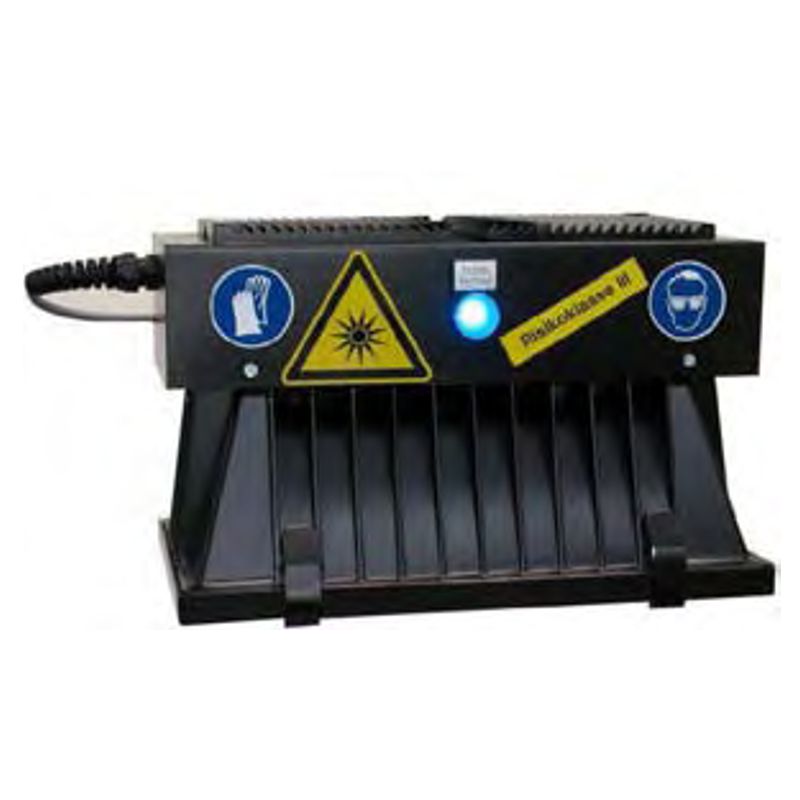

ZERO 400-A-UV stationary mercury-vapour UV lamp

ZERO 400-A-UV stationary mercury-vapour UV lamp

Specifications

         The ZERO 400-A-UV is a compact lamp consisting of lamp housing with abovemounted ventilator and separate starting controller. The ZERO 400-A-UV lamp is equipped with a UV-B long-pass filter which cuts off the emission in UV-B and UV-C spectral ranges, protects the bandpass filter and limits the glass surface temperature to 80 °C.


Technical Data:
Supply Voltage: 230V - 50/60Hz
Operating Current: aprox. 3.3 A
Warm-up Time: approx. 5 min
Recovery Time: < 10 min.
UV source: HTC 400
UV source lifetime: approx. 1500 h
UV intensity at 400 mm distance: 5500 µW/сm2
Wavelength: 365 nm
Emission half-width: approx. 27 nm
Risk class acc. to EM6: III
Weight: aprox. 4 kg
Dimensions: 300 x 300 x 210 mm
Protection class: IP 20
