880 Series Source Projectors
Specifications
Applications
Model 880 Series exposure devices are used for industrial applications of gamma radiography, mainly with Iridium - 192, to inspect materials and structures in the density range of approximately 2.71-8.53g/cm3. Low energy isotopes can be accomodated to permit radiography of materials and structures of thin sections of steel and low density alloys.
The 880 series exposure devices are also designed for use with low activity sources with high photon energies for mass absorption (gamma scanning) studies of high density materials up to 18.7g/cm3.
Exposure device

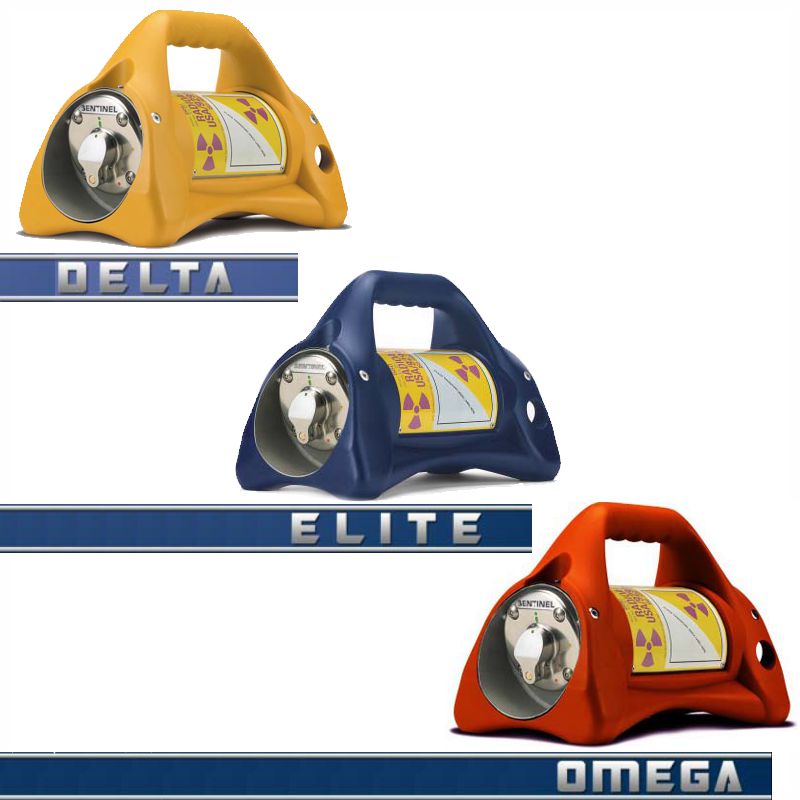

Sentinel Model 880 Delta, ELite and Omega source projectors are portable, lightweight and compact industrial radiographic exposure devices. The exposure device body consists of a titanium "S" tube and cast depleted uranium (DU) shield contained within a 300 series stainless steel tube with stainless steel discs welded at each end forming a cylinder shaped housing. The discs are recessed to provide protection for the rear mounted locking mechanism and front mounted outlet port.
The horizontally oriented design allows the locking mechanism, source assembly connector and outlet port to be easily operated, simplifying the connection of source guide tubes and projection sheats. The internal void space of the housing is filled with rigid foam to prevent the ingress of water or foreign material, but is open to atmospheric pressure.
The exposure device body, containing the DU shield, locking mechanism, outlet port, protective covers and required labels, comprises the radioactive material transport Type B package.
| 880 Omega | 880 Elite | 880 Delta | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimesnions | L: 33,8cm x l: 19,1cm x I: 22,9 cm | ||||||||||||||||||||||
| Weight | 15,0 kg | 19,0 kg | 23,6 kg | ||||||||||||||||||||
| Activity of Depleted Uranium Shield | 2,7mCi (101MBq) | 3,8mCi (141MBq) | 5,4mCi (200MBq) | ||||||||||||||||||||
| Certification | Transport Package Tip A, 49CFR173.415 şi IAEA TS-R-1 (1996 Revised) | Package Type B(U), Certification Number USNRC & USDOT USA/ 9296/B(U)-96, Package Type B(U), CNSC CDN/E 199/-96 | |||||||||||||||||||||
| Accreditation |
SENTINEL™ Delta, Elite, şi Omega 880 models are designed, manufactured and tested to meet the requirements of ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (1996), USNRC 10CFR34, 10CFR71, 49CFR173, MA-1059-D-334-S, şi CNSC R-061-0001-2-2012. Additionaly, the exposure devices are designed, manufactured and serviced under a QA program that has been accredited to ISO 9001 and approved in accordance with USNRC 10CFR71, Subpart H. The QA program also includes reporting requirements of USNRC 10CFR21 for suppliers of source and by product materials.
|
||||||||||||||||||||||
| Removable Jacket | One-piece, high impact resistant, plastic jacket incorporating a carrying handle and base. | ||||||||||||||||||||||
| Materials | Titanium "S" tube, DU Shield, Stainless Steel Tubular Shell and plates, Aluminum, Brass, Tungsten, Polyurethane | ||||||||||||||||||||||
| Source Assemblies and Authorized Contents | USNRC Model Number: A424-9 source assembly with a double encapsulated Ir-192 sealed source. The IAEA/USDOT Special Form Certificate number is USA/0335/S. In addition, the following isotopes may also be utilized in the 880 series exposure devices: | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| Device/Source Maximum Capacity | Se-75: 80Ci 3.00TBq Ir-192: 15Ci 0.55TBq Yb-169: 30Ci 1.11TBq |
Se-75: 150Ci 5.55TBq Ir-192: 50Ci 1.85TBq Yb-169: 30Ci 1.11TBq |
Se-75: 150Ci 5.55TBq Ir-192: 150Ci 5.55TBq Yb-169: 30Ci 1.11TBq |
||||||||||||||||||||
| Controls and Guide Tubes | 880 Series Projectors are designed, manufactured and approved for use with Sentinel authorized controls and accessories only. | ||||||||||||||||||||||
| Inspection Requirements | Perform daily pre-operational inspection for any obivious damage to the system. See device operation and maintenance manual for detailed maintenance requirements. | ||||||||||||||||||||||
| Maintenance Requirements |
Most national regulations require inspection and maintenance of the system at quarterly intervals. The complete annual servicing ensures the integrity of the system. Shorter frequencies of inspection and maintenance are required when the system is operated under severe operating environments. In some cases, the system should be serviced immediately after certain jobs in severe environmental working conditions.
See service operation and maintenance manual for detailed maintenance requirements.
|
||||||||||||||||||||||
