Compact 2 NDT
Specifications

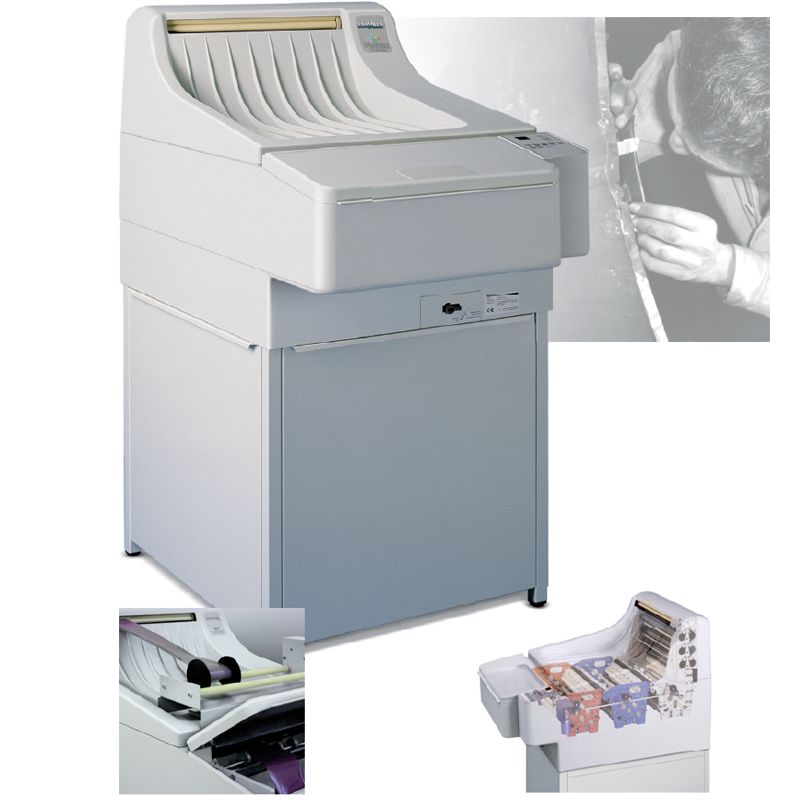

COMPACT 2 NDT Industrial X-ray film processor
The Compact 2 NDT is a very powerful x-ray film processor. Our top-model was designed for processing all standard film types up to a width of 45cm. The extreme high capacity guarantees quick acces to the processed films.
The integrated stand-by mode reduces your water and energy consumption. The film detection with four infrared sensors allows intelligent and economic replenishment depending on the processed film surface, with individually adjustable rates. This saves chemicals and procides a constant high quality of your image.
On the control panel you can individually set the processing time, temperatures and replenishment rates. In addition you can automatically fill the tanks during the warm-up cycle. Five different programs are available for storing individual settings. This, plus the acoustic and visual controls means convenient operation and safety. The anti-cristallisation and anti-oxidation programs in combination with the continuous circulation of the chemicals ensure permanent readiness for use and consistency of your images.
Date tehnice
| Dimensions(LxWxH) : | 97 x 68 x 127 cm |
| Weight (empty/filled): | 91/129 kg |
| Film formats: | min. 10 x 10 cm – max. 45 x ∞ cm |
| Film types: | sheet and rollfilms |
| Processing time: | 60-300 sec |
| Capacity: | 10 x 10 = 3020 films/h (4 x parallel) 24 x 30 = 348 filme/h 43 x 35 = 245 films/h |
| Developer temperature: | 28ºC - 40ºC |
| Dryer temperature: | 35ºC - 70ºC |
| Film detection: | 4 infrared sensors |
| Replenishment rates: | 150 – 3000 ml/m2 |
| Replenishment containers: | 25 L |
| Anti-oxidation: | Off or 5-99 min |
| Anti-cristallisation: | 20 min intervals |
| Program memory: | 5 programs |
| Tank volumes (D/F/W): | 12,5 L / 12 L / 13 L |
| Water consumption: | 1,9 L/min. during processing |
| Water consumption in Eco mode: | 0,95 L/min. during processing |
| Water consumption during Stand-by: | 0,0 L/min. |
| Overfilling protection: | Level sensor |
| Energy consumption: | 2,5 kWh – during processing; 0,23 kWh – during stand-by; |
| Electrical connections: | 208-240 V / 10-14 A / 50 Hz |
| Water connection: | ¾ inch ; 2 – 10 bari |
| Special function: | automatic refilling of the tanks with chemicals |
