D 250 Magnetic Field Indicator (ASME Indicator)

Specifications

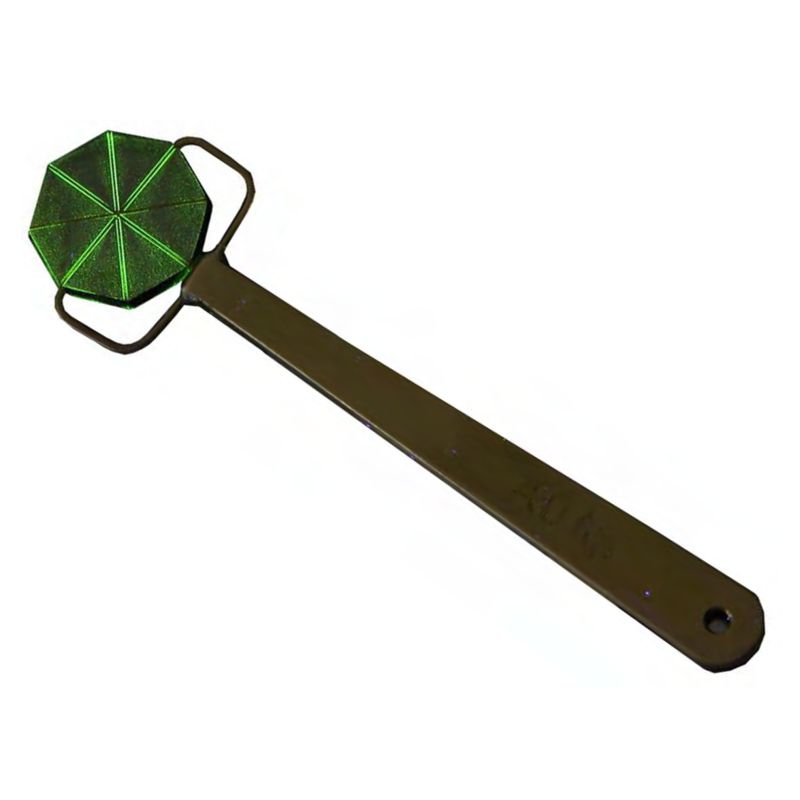

           The ASME indicator is used for localisation of magnetic fields and their directions during execution of magnetic particle testing. Suitable magnetic flux is obtained when the indicator is laid copper side up on the work piece in the area of interest and a clearly defined indication is formed across its face when magnetic particle suspension is applied.
The magnetic field indicator type D 250 is designed in accordance with the following specifications:
MIL-STD-271 E, § 4.3.2.5.5, figure 8
NAVSHIPS 250-1500-1, § 12.4.1.5, figure 12 – 17
ASME, section V, Art. 25, SA-275, figure 8
