INDUSTREX T200 Films

INDUSTREX T200 Films

Specifications

INDUSTREX T200 Films

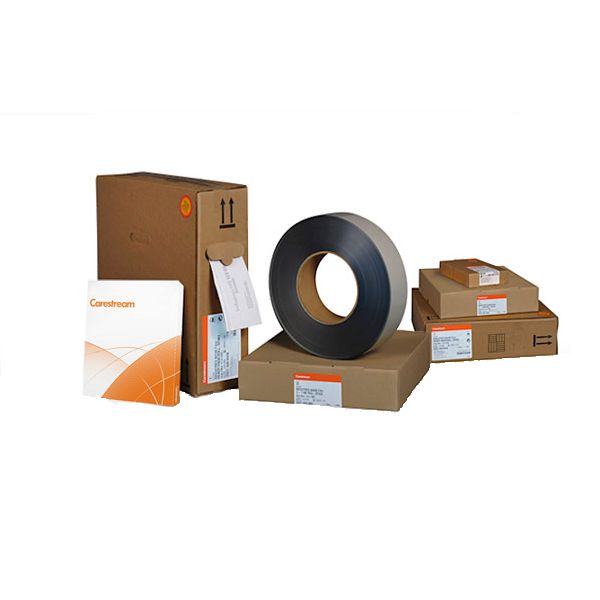

          Carestream INDUSTREX T200 Film is recommended for critical imaging applications, since it can be used in multiple film loads to provide you with an extended imaging range. Best of all, it incorporates Carestream Health’s patented T-GRAIN Emulsion technology.

The Basics

            T200 Film is a medium-speed, high-contrast fi lm with very fine grain. T200 Film is an En 584-1 Class 4 fi lm and our fastest ASTM E 1815 Class I fi lm. It’s tough and durable—T200 Film can withstand high temperatures, and it’s less susceptible to handling and static artifacts. It’s also versatile--you can use it with direct x-rays or with lead foil screens.

Processing Options

         T200 Film can be processed manually or automatically in a range of processing cycles. Notice: Observe precautionary information on product labels and Material Safety Data Sheets. Develop with rack and tank, using properly replenished solutions.

Recommended Uses

            Carestream INDUSTREX T200 Film is available in a wide range of sizes and packaging formats, and it’s specially designed for applications such as: Aircraft inspection; Aero-engines;  Assemblies; Electrical components; Archeological artifacts; Castings; Forensics; Forestry; Munitions, Bomb disposal; Nuclear applications;  Paintings, sculptures; Pipelines; Welded fabrication.



INDUSTREX
Processors/Cycles
Base + fog Contrast1
M43ic—8 min 79°F (26°C) 0.20 4.7
M43ic—5 min 86°F (30°C) 0.20 4.7
1) Contrast calculated between net densities of 1.5 and 3.5.
