INVIZ Revolver 80 Pipe Inspection Camera

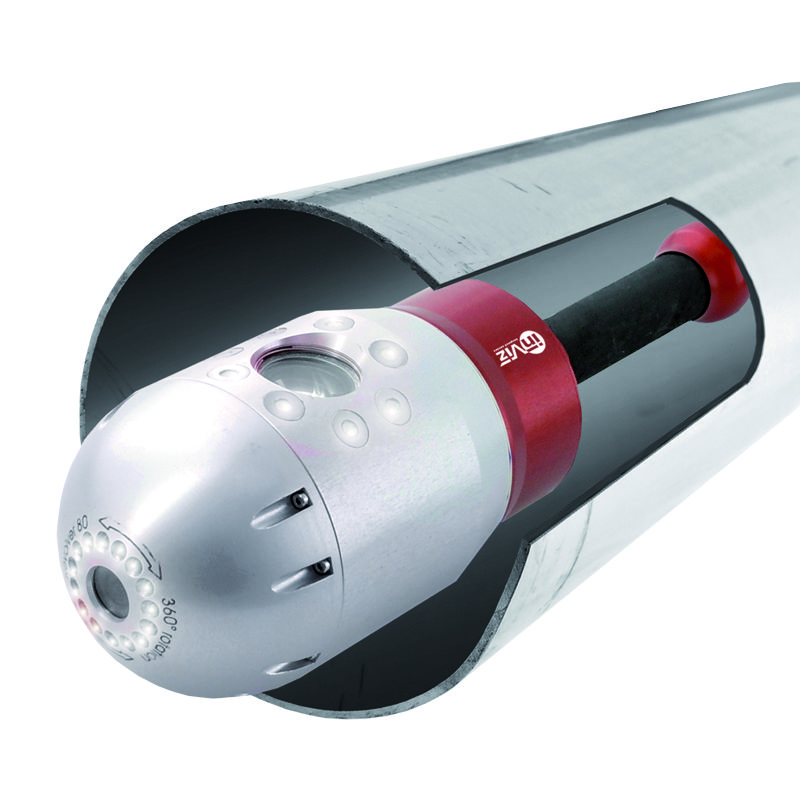

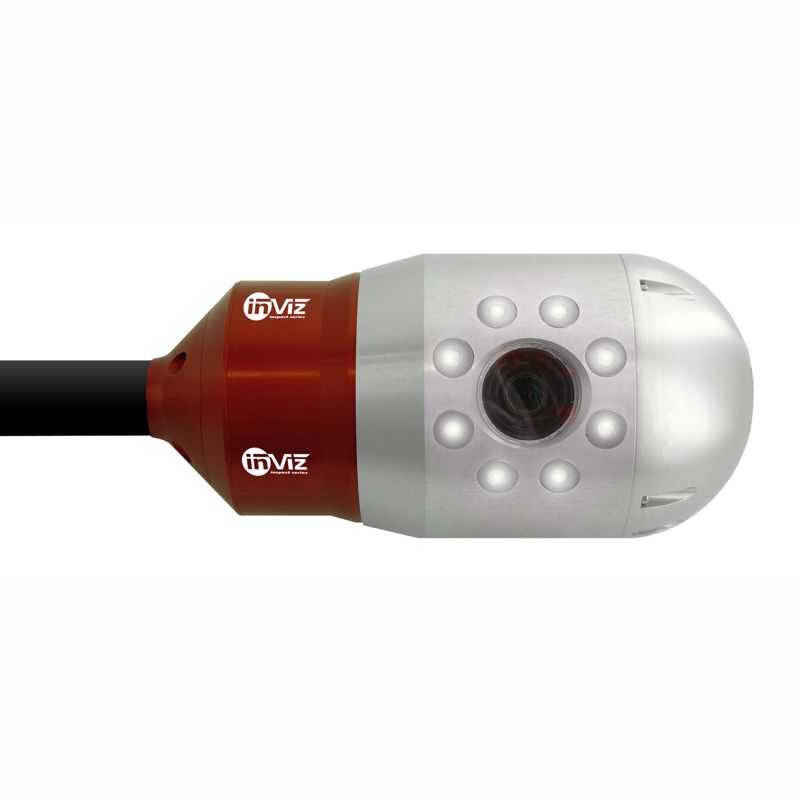

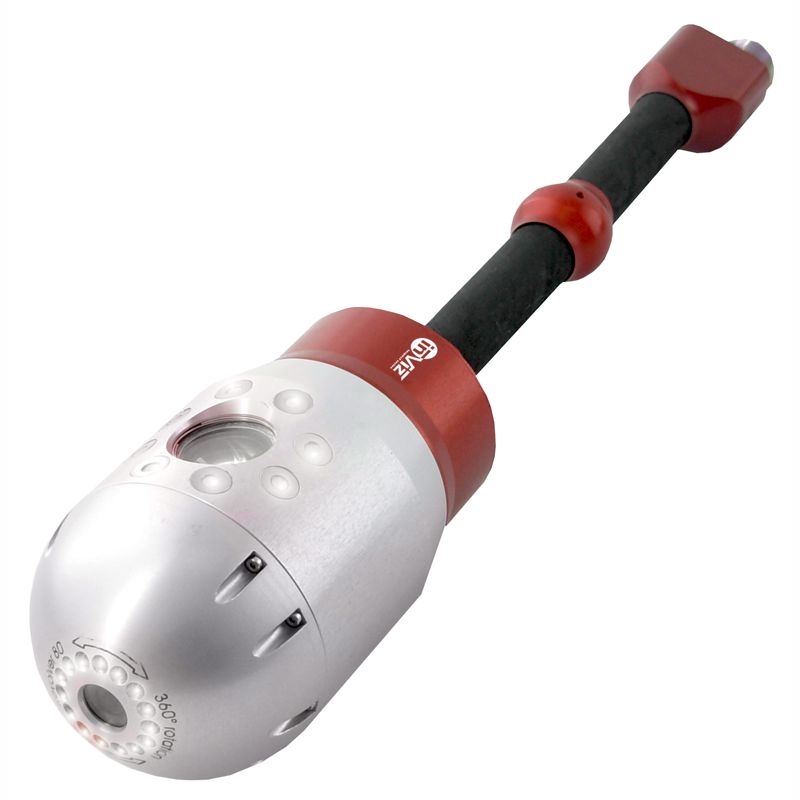

       Controlled by the joystick or following a predefined software scan mode, the side view camera is revolving 360° endlessly, ensuring 100% orbital weld or tube wall panorama inspections. No detail is missed. On the tip of your finger you zoom onto the smallest detail from the remotest areas with the impressive 10x optical and additional electronically zoom. A high resolution forward view camera is offering excellent sight and orientation within your application. The powerful dual illumination technology is delivering homogenous automatic or manual illumination, even in big dark cavities. A user defined left/right level functionality maximizes the potential failure contrast also on shiny and reflective surfaces such as coated or electro polished food grade tubes.

       Specific camera positions can be saved and recalled. If used, the camera automatically returns precisely to positions of interest. The auto Run & Scan function is ensuring the systematic outright containment wall inspection. Camera positions can be displayed and recorded. Orientation and image interpretation are easy now. Orientation during remote visual inspection after a view twists and turns is difficult .If there is no specific geometry or water level, up/down left or right orientation will be lost. Manoeuvering the instrument, interpretation of the image and securing full inspection can become a nightmare. The INVIZ® Revolver 80 auto level function solves all. It keeps your camera in an upright 0° position. That resets the orientation and ensures a precise inspection staring point. Equipment handling and image interpretation is easy. It reduces inspection time, user and equipment fatigue and therewith cost. Longitudinal weld seam inspections are seamless.
