KOWOLUX M-Series mobile NDT film Viewers
Specifications
Attached files:

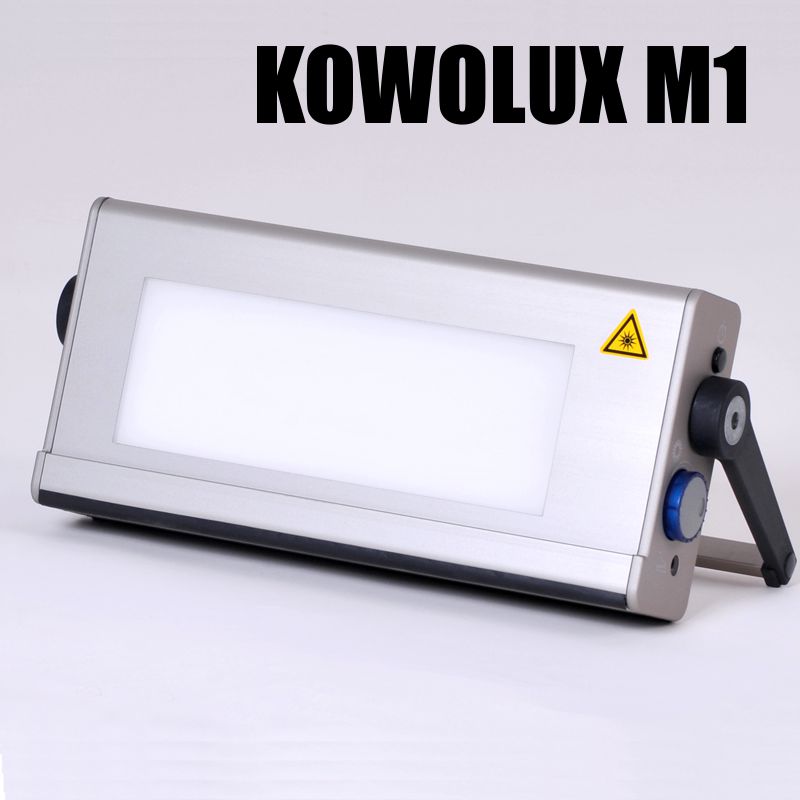

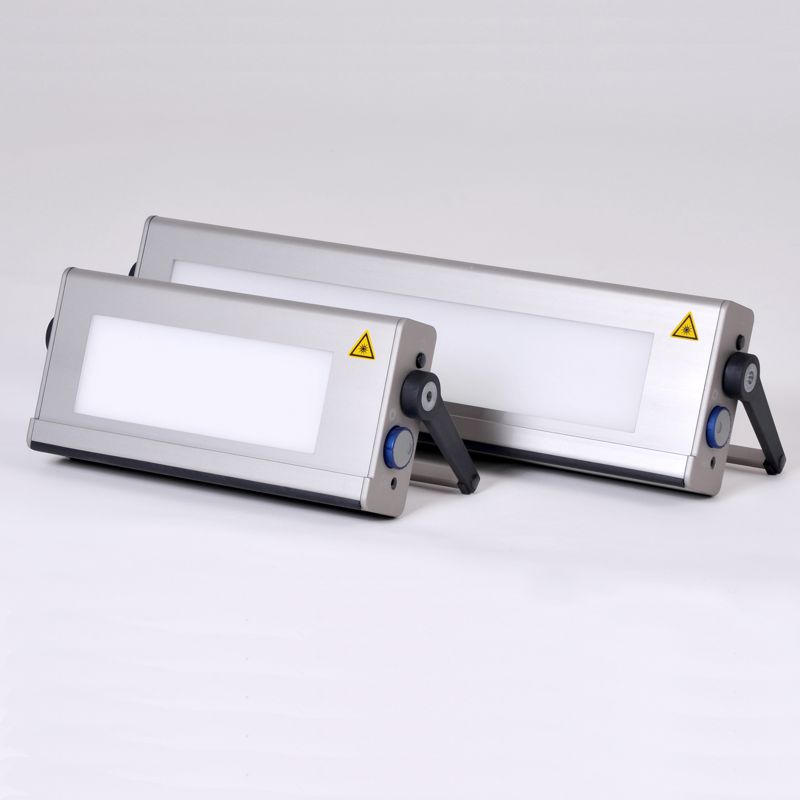

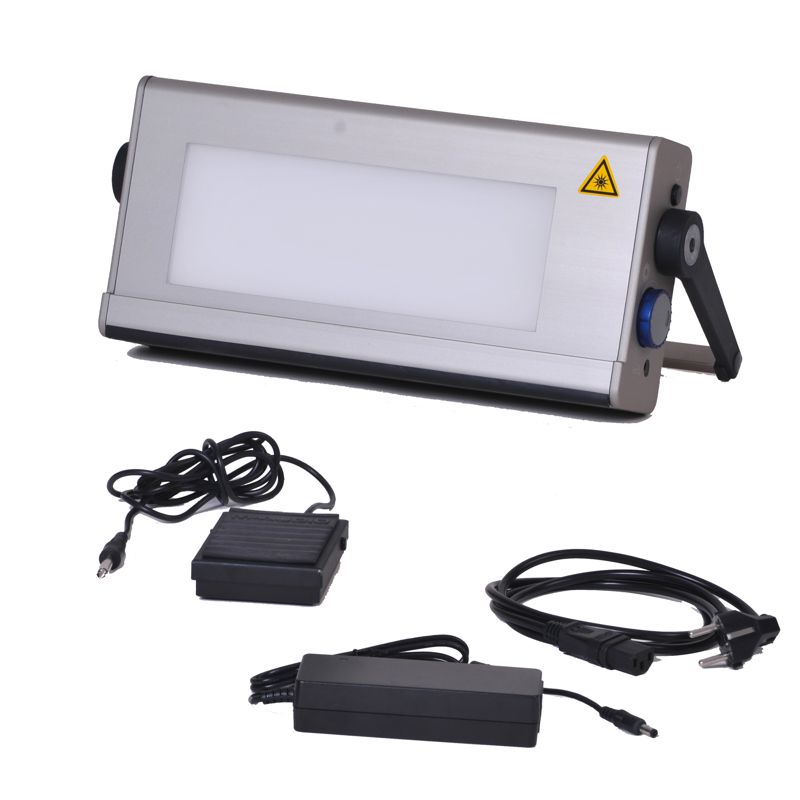

KOWOLUX M-Series mobile NDT film Viewers with PowerLED
This new series of LED film viewers was specially designed for mobile application and use in mobile labs where besides volume and weight, dust is a matter. Naturally, these viewers are also suitable for daily film viewing in-house as a low-price alternative to the KOWOLUX X models. Due to very high efficiency of the PowerLED no cooling fan is required.
The specially designed housing made of a strong aluminum profile is completely closed and therefore dustproof. Despite its lightweight design, a secure stand of the viewer is granted. The carrying handle can also be used for adjusting the viewing angle.
|
Characteristics:
|
KOWOLUX M1
|
KOWOLUX M2
|
|
Luminance max
|
100,000 Cd/m²
|
|
|
Film Density, max:
|
4.0 D *)
|
|
| Viewing screen |
225 x 80 mm (for films 10x24 cm)
|
450 x 80 mm (for films 10x48 cm)
|
|
Rated Power:
|
70 W
|
140 W
|
| Power Supply: |
100 ~ 240 V, 50/60 Hz 24 V DC,
90 W
|
100 ~ 240 V, 50/60 Hz – 24 V DC,
160 W
|
|
Dimensions:
|
325 x 62 x 150 mm
|
552 x 62 x 150 mm
|
|
Weight:
|
9 kg plus 0,5 kg power supply
|
4.5 kg plus 0.8 kg power supply
|
| Colour temperature of LEDs |
5000K
|
|
|
Lifetime of LEDs:
|
40 000H
|
|
*) conform ASTM E 1390, ISO 5580, DIN EN 25580)
