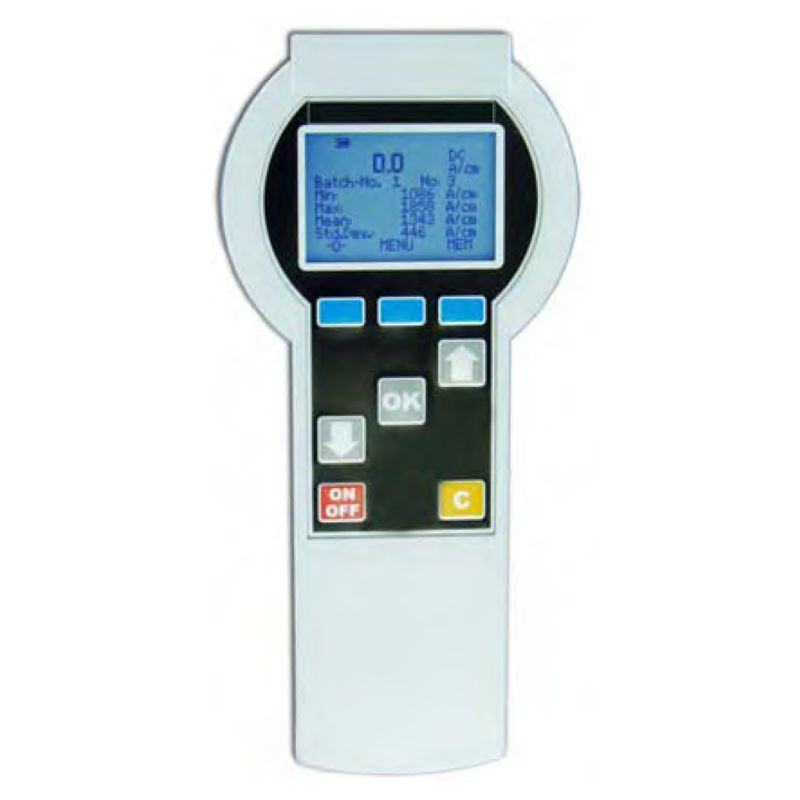

MP-2000 Magnetic Field Meter
Specifications
MP - 2000 Universal Field Meter is the highest performance device with special features, offering the professional user the following options:
- Measurement of all kinds of constant and alternating fields (True-RMS).
- Very fast, integrated peak value storage for measuring pulsed fields >= 0.1 ms
- Measuring range up to 4,000 kA/m, switchable between Tesla - Gauss - A/cm - kA/m.
- Illuminated graphic display with additionally measured analogue value indication
- Automatic range selection.
- Menu navigation in various languages.
- Measurement storage (10,000 measurements), distributable into up to 100 application memories.
- Can be used with tangential, axial or reed probes.
- Integrated RS232 and USB - wireless interfaces for documenting the measurement results on a PC or printer.
Technical Data | |
---|---|
Display | Illuminated graphic display |
Measuring Units | kA/m - A/cm - Gauss(Oe) - Tesla (selectable) |
Measuring Ranges | CC: 0- 4000 kA/m; 0-40000 A/cm (Gauss/Oe); 0–4000 mT CA: 20-20000 A/cm (Gauss/Oe); 20–2000 kA/m; 20–2000 mT Automatic Range Selection |
Resolution | 0-200 A/cm (Gauss): 0,1 A/cm (G) > 200 A/cm (Gauss): 1 A/cm (G) > 10000 A/cm (Gauss): 1 kA/cm (G) 0-20 kA/m (mT): 0,01 kA/m (mT) > 20 kA/m (mT): 0,1 kA/m (mT) > 1000 kA/m (mT): 1 kA/m (mT) |
Precision in homogeneous field | CC/CA – 0-2000 kA/m + 2%; > 2.000 kA/m + 3% |
AC Frequency range (AC=RMS) | 10 Hz – 5 kHz |
Peak hold | Impulse duration >= 0,1msec |
Power Supply | 3 x 1,5V AA Mignon or rechargeable batteries 3 x 1,2V AA |
Operating Time | Approx. 100 hours |
Measuring Probes | Р-А2, Р-А4 axial, Р-Т2, Р-Т4 tangential, Р-Z2, Р-Z4 flexible reed |
Statistical Evaluation | Yes |
Dimensions | 198 х 92 х 35 mm |
Weight | 265 g (with batteries) |
