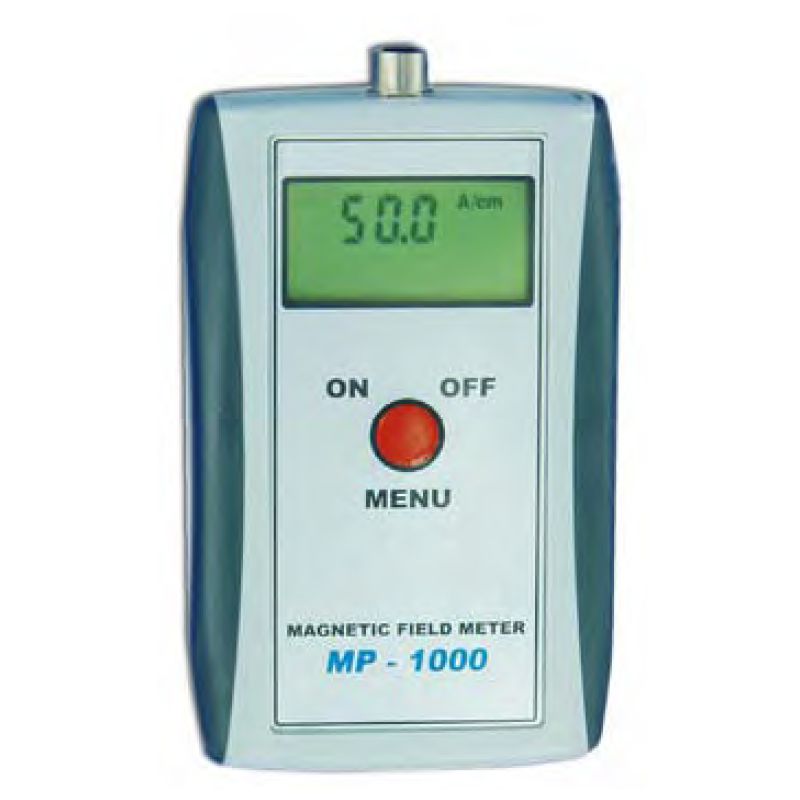

MP1000 Magnetic Field Meter/Gaussmeter

MP1000 Magnetic Field Meter/Gaussmeter

Specifications

Magnetic Field Meter to measure all kinds of steady and alternating fields


           The LIST-MAGNETIK MP-1000 magnetic field meter is a handy universal device with externally connectable tangential and axial field probes for the precise measurement of all types of magnetic fields: steady DC fields, alternating AC fields and pulsed fields.

With the easy one-button operation, magnetic field strength can be measured from the weak earth magnetic field up to strong field s of 20,000 A/cm, switchable in Gauss/Oersted.

            A separate built-in micro controller in the MP-1000's measuring probes digitizes and linearizes the analog measurement signals of the hall sensor into the probe. This gives an extremely trouble-free and precise measurement, especially at high magnetic field strengths. The probe cable is pluggable at both ends, at the display unit and the probe, which is particularly service-friendly, as the cable can simply be replaced if it becomes faulty. Applications of the Magnetic Field Tester MP-1000 are the test for residual magnetism, the measurement of magnetic fields of all kinds, as well as the localization of stray fields for crack detection.

            With a magnetic field meter / magnetometer / Gaussmeter / Teslameter (all names describe the same) you can see small differences in the strength of the magnetic field during the magnetic field measuring. From low field values just above the Earth's magnetic field, via residual magnetism / remanence with low A / cm or Gauss / Oersted residual magnetic field values up to peak fields, the magnetic field meters from List-Magnetik are durable and you get reproducible field strength values during the magnetic field test. In addition, we offer a calibration standard (reference magnet), with which you can always check your magnetic field tester for accuracy.
