Test case for magnetic particle testing

Specifications

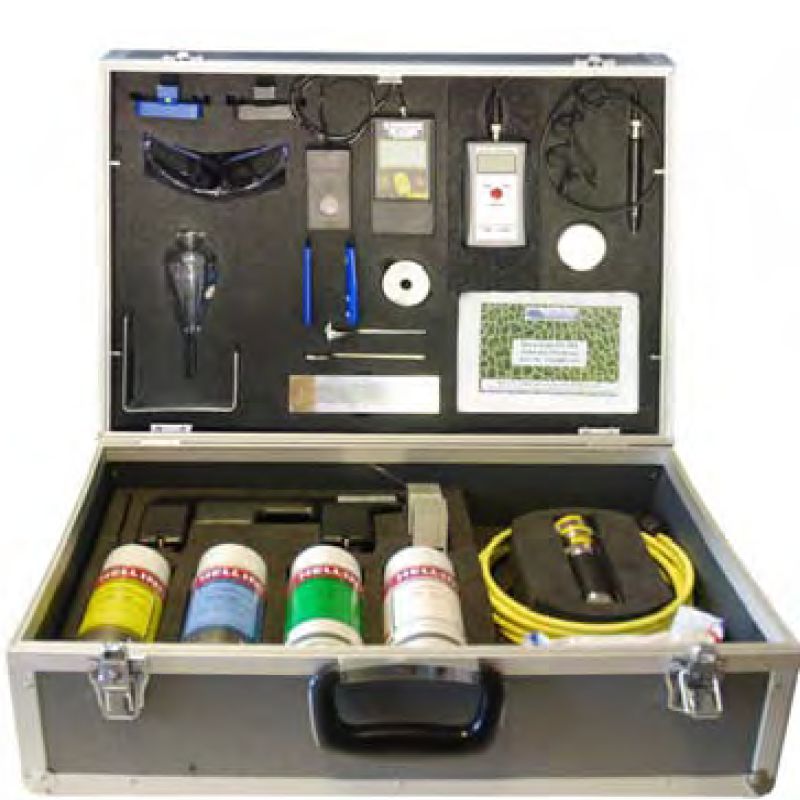

The HELLING test case has been developed for teaching purposes at training centers and technical schools. It is also suitable for inspectors of NDT classification companies to appraise the proper MT test performance and therewith the absence of cracks. The test case contains all necessary equipment and consumables for the flexible MT testing.

Contains:

1. UM 9 / HANSA -230 hand yoke electromagnet
2. Two-limbs flexible poles for UM 9 hand yoke
3. Inductive light sources:
a. White light LED source
b. UV LED source
4. UV-Inspector 365 lamp
5. Consumables:

• NRF 101 fluorescent MP suspension (aerosol can)
• NRS 103 black MP suspension (aerosol can)
• NR 107 remover for background paint (aerosol can)
• NR 104 A white background paint (aerosol can)

6. UV protective glasses
7. Combined UV-intensity and luxmeter
8. Magnetic field meter MP-1000 with tangential probe and reference gage
9. Reference block No.1 (acc. to EN ISO 9934-2)
10. Reference block No.2 (acc. to EN ISO 9934-2)
11. Berthold magnetic field indicator
12. D 250 magnetic field indicator (acc. to ASTM)
13. Burmah-Castrol Type I and Type II magnetic flux indicators
14. Centrifuge tube for sedimentation control with stand
15. Gelatinous Docu-Films for defectogram documentation (10 pcs)
16. SCRUBS cleaning towels
