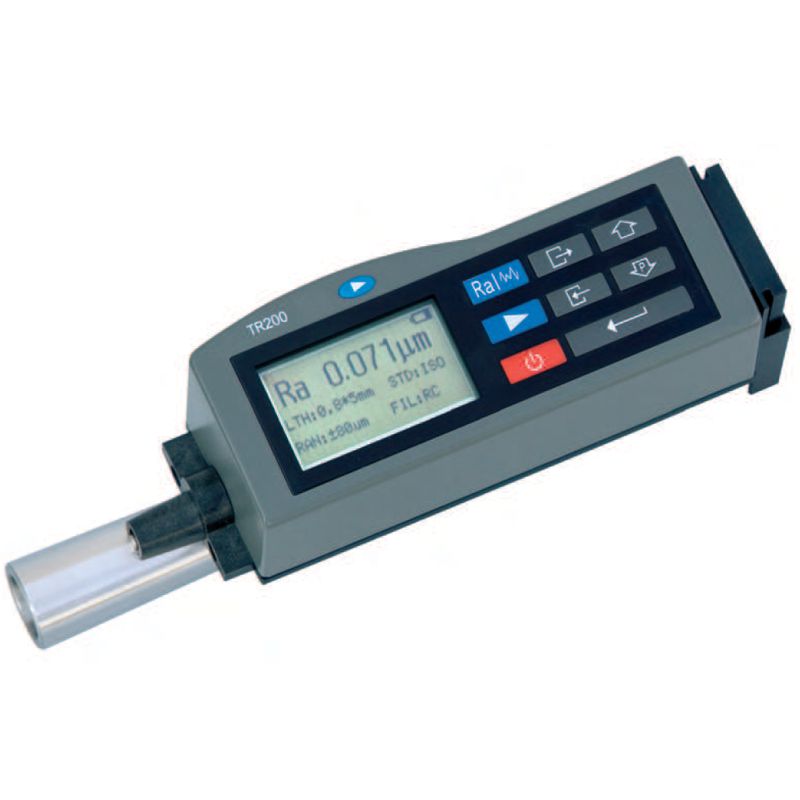

TR200 Surface Roughness Tester
Specifications
Attached files:
Handheld Surface Roughness Tester with Graphical Display
Detects the roughness of hard surfaces as well as inside holes, openings and grooves
For example at: Labs, measuring rooms, workshops, engineering facilities, and many more
For example at: Labs, measuring rooms, workshops, engineering facilities, and many more
Features:
- Easy to operate menu
- Display of 13 roughness parameters (TR200)
- Display of 19 roughness parameters (TR220)
- Wave filtering methods: RC , PC - RC , GAUSS , D-P
- Cutoff wavelength: 0.25 mm / 0.8 mm / 2.5 mm
- Visualization of the roughness and the material curve on the display-screen
- Displays the probe positioning
- DSP chip for data processing and calculation (for high data processing speed)
- Various sensors for measurements in boreholes , openings and grooves
- RS-232 interface
| Technical Characteristics | |
|---|---|
| Measuring Range: | Ra, Rq: 0.01 - 40 µm Rz, Ry, Rp, Rt, R3z: 0,02 - 160 µm Sm, S: 2 - 4000 µm |
| Roughness: | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rm, R3z, S, Sm, Sk, tp |
| Cross Wavelength (cut-off): | 0,25 mm / 0,8 mm / 2,5 mm |
| Dimensions: | 141 mm x 56 mm x 48 mm |
| Power Supply: | rechargeable batteries |
| Measuring Units: | mm or inch |
| Resolution: | 0,001 μm |
| Memory: | internal, RS232 interface |
