Handheld X-Ray Metal Analyzer

Handheld X-Ray Metal Analyzer
  • Handheld X-Ray Metal Analyzer


           X-ray has historically been excellent for stainless, high temps, most red metals and specialty alloys. However it’s performed poorly on aluminum alloys, leading to mix-ups and requiring long test times. Why? Because until recently X-ray did not measure Mg or Si well, which are critical alloying elements in aluminum alloys.

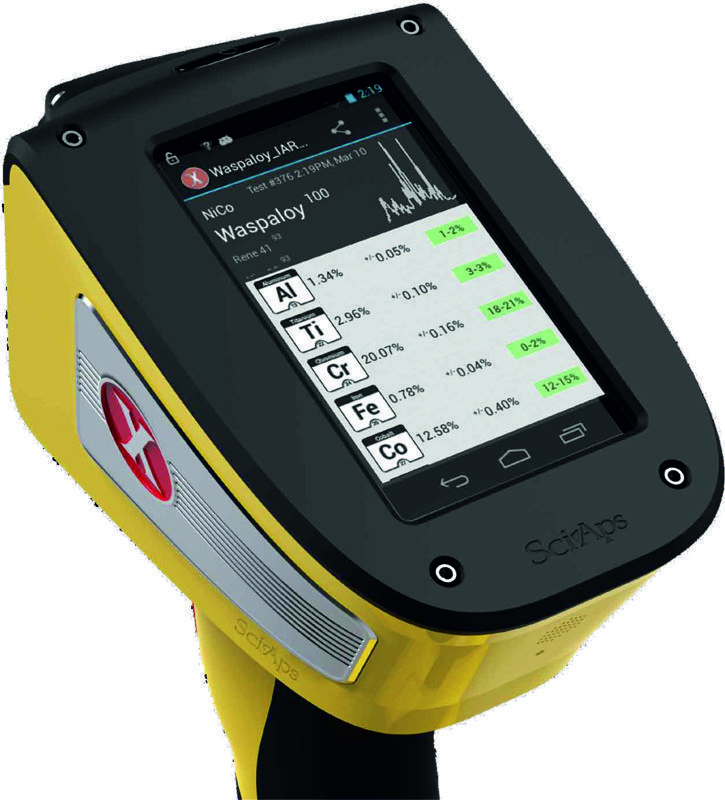

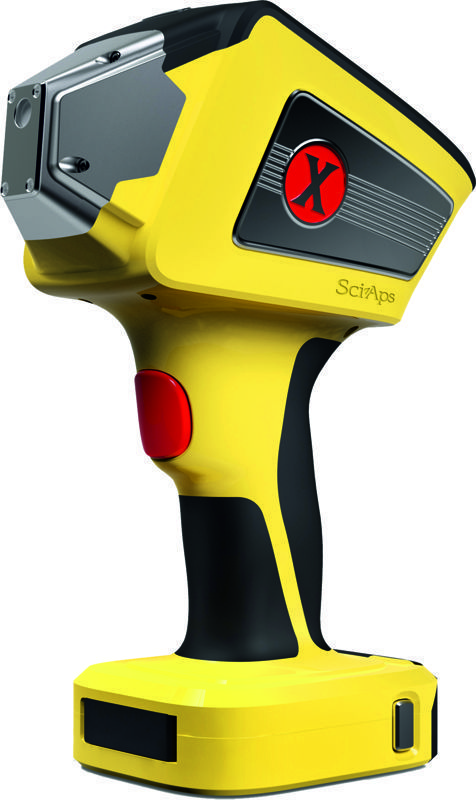

          The world’s lightest, smallest, fastest, high precision family of XRF analyzers. Speed, precision, beautifully packaged. The X’s weigh barely 3 lbs, are lightning fast, and can be used all day long without fatigue. They’re built on the Android platform for global connectivity. Manage your data and fleet anywhere, print or email results seamlessly. And Visibility? The X features the latest 5″ Smartphone display for easy viewing in all lighting conditions. Integrated camera/video for sample viewing with all models.

           For the first time ever, the speed and accuracy of spark on aluminums AND the performance of X-ray for high-temps, stainless and turnings. Now all in one analyzer.

       Our tube or detector replacements are less than half other brands. And we reduce the likelihood of those budget-busting broken detectors with our highspeed shutter. It guards against detector punctures from stray tools, fingers, or window cleaning gone bad. The X features a novel high speed shutter that only opens during testing. The shutter eliminates the single biggest cause of broken detectors — stray fingers, tools, or pieces of metal that strike the detector between tests.

      Detector characteristics: 20mm 2 silicon drift detector (active area), 135eV resolution FWHM at 5.95Mn K-alpha line.

         Our Mobile App automatically shares tests results to your phone. Then simply email or text results instantly, globally. Want real-time data from anywhere in the world? Our new Sync App sends every test to computers globally (Peer-toPeer). Monitor testing, share results globally in real time. End tedious manual exporting forever.
