HELLMAG Type Vario 2500 test bench
Specifications
The test bench HELLMAG Type Vario 2500 has been designed for combined magnetization with two magnetizing circuits - AC current flow and AC coil magnetization. Thus, the equipment is capable of detecting flaws of any orientation simultaneously. This bench is especially appropriate for testing railroad wheelset axles.

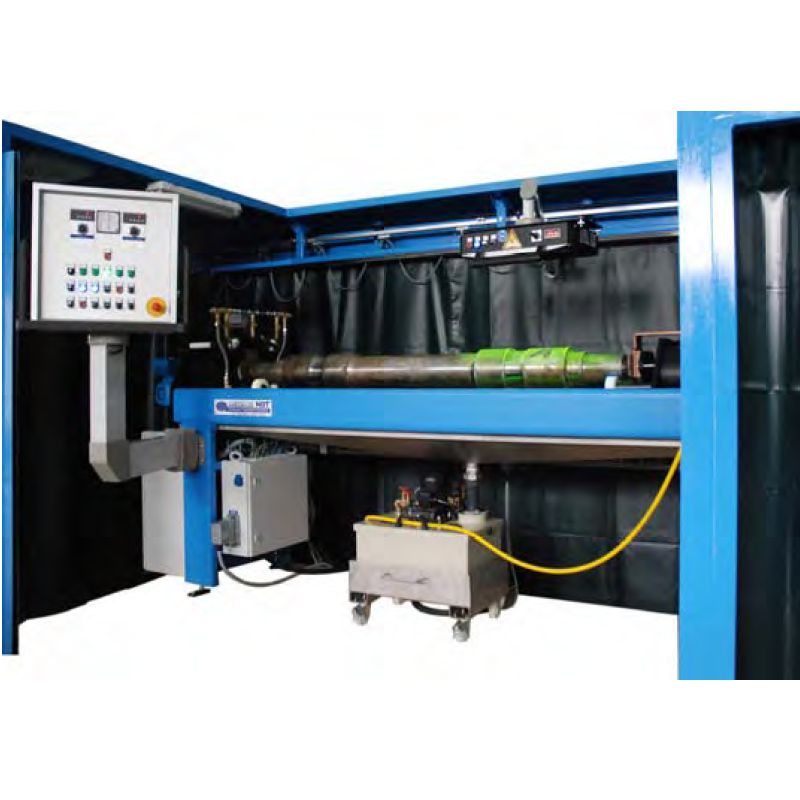

The HELLMAG Type Vario 2500 includes following components: dark room unit with curtains and roller blind; swivel control panel, sliding UV LED lamp, joystick for coil movement and work piece rotating, manually adjustable work piece support carriages with pneumatic clamping, motor-driven travelling coil with circular showering unit, suspension tank with pump and bypass, control cabinet.
| Technical Data | |
|---|---|
| AC current flow (stepless adjustable): | max.3000A eff. | 4200A |
| AC coil magnetization (stepless adjustable): | max. 4500 Aw. |
| Clamping length: | 2500 mm |
| Work piece length: | up to 500 kg |
| Stroke length of quick clamping device: | approx. 25 mm (two-hand controlled) approx. 7 mm(foot-switch) |
| Suspension tank: | approx. 40 litres |
| Power Supply: | 400 V, 3 - phase |
| Control Voltage: | 24 V, 50 Hz |
| Power Consumption: | 75 kVA |
| PressurizedAir: | 5-6 bar |
| Automatic Demagnetization: | yes |
