NORD-TEST Penetrant System
Specifications
CONTRAST (RED-WHITE) PENETRANT TESTING
The NORD-TEST penetrant system is widely applied for parts testing in engineering and automobile industry, ship and boiler building, welding, etc. within a temperature range from –5°C to +50°C. In order to assure the proper sensitivity while testing at low temperature (from -5 С to +10 С) it is necessary to increase the penetration time according to the requirements of EN ISO 3452-6. For testing at higher temperature (from 65° С to 180° С) the SUPER-CHEK penetrant system has been developed specially.
The NORD-TEST penetrant system was tested and approved in accordance with EN ISO 3452-2, KTA and meets the requirements of Lloyd's Register of Shipping, Bureau Veritas, Bureau Central Hollandais, Germanischer Lloyd, MIL-I- 25135/QPL-25135, AMS 2644, ASME Boiler and Pressure Vessel, ASTM E165 und ASTM E1417.
The low content of sulfur and halogens was ascertained and confirmed according to ASTM E 165-02 and ASTM D 516 02, as well as to requirements of KWU and EN ISO 3452-2.

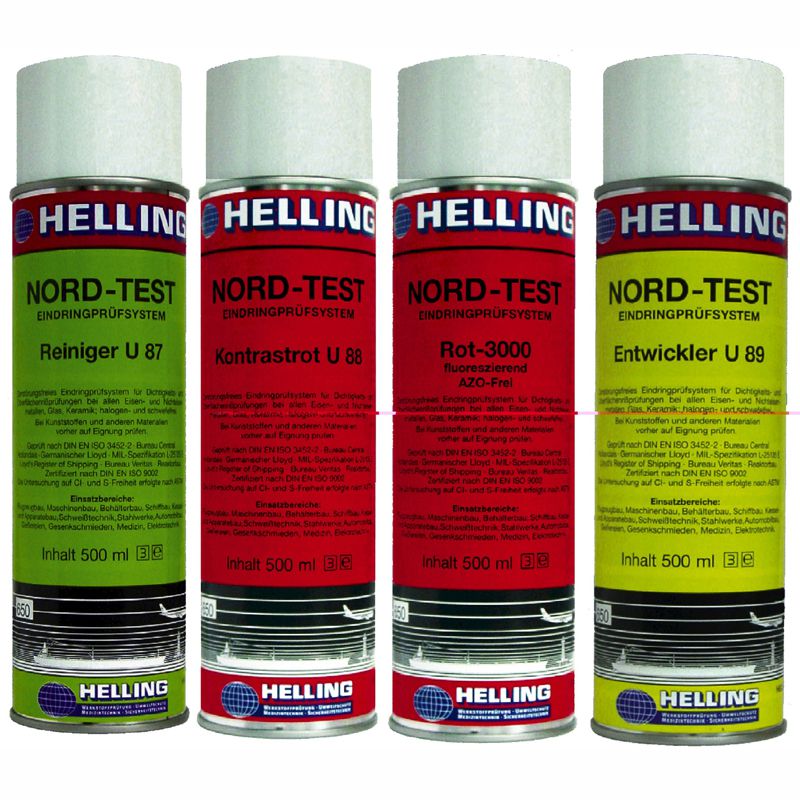

Product Name | Sensity Level | Removal Medthod | Product Information |
NORD-TEST U87 Cleaner | NA | NA |
Environmentally safe alcohol based cleaner.
Class 2 - 2 – Nonhalogenated solvent remover.
Fast evaporating without residues. |
Delivery Form: Spray 500 ml Can 1 L Can 10 L Cask 200 L |
|||
NORD-TEST U88
Penetrant
|
Class II (high sensibility) acc to.DIN EN ISO3452-2 |
«A» - water washable
«C» - solvent removable «E»- water and solvent removable
|
Highly sensitive, deep red penetrant (Type II) with good wetting properties. Well washable. Practically odor-free. |
Delivery Form: Spray 500 ml Can 1 L Can 10 L Cask 200 L |
|||
NORD-TEST Rot3000
Penetrant
|
Class II (high sensibility) acc. to DIN EN ISO3452-2 |
«A» - water washable
«C» - solvent removable «E» - water and solvent removable
|
Red fluorescent penetrant (Type III) without azo dye. Biodegradable. Very well washable. Practically odor-free. Fluorescent under UV irradiation for brilliant indications. |
Delivery form: Spray 500 ml Can 1 L Can 10 L Cask 200 L |
|||
NORD-TEST
Penetrant Foam Red & Fluorescent
|
Class II (high sensibility) acc. to DIN EN ISO3452-2 |
«A» - water washable «C» - solvent removable |
Red fluorescent penetrant foam (Type III) without azo dye. Water based. Simple usage, exact and neat application, very well removability. Reliable test results. |
Delivery form: Spray 300 ml |
|||
NORD-TEST U89
Developer
|
NA | NA |
Fine-grained white powder suspension on
alcohol base. Flavoring free. Short drying
time. Forms a thin and homogenous layer. |
Delivery Form: Spray 500 ml Can 1 L Can 10 L Cask 200 L |
