Personal Dosemeter Graetz ED150

Specifications

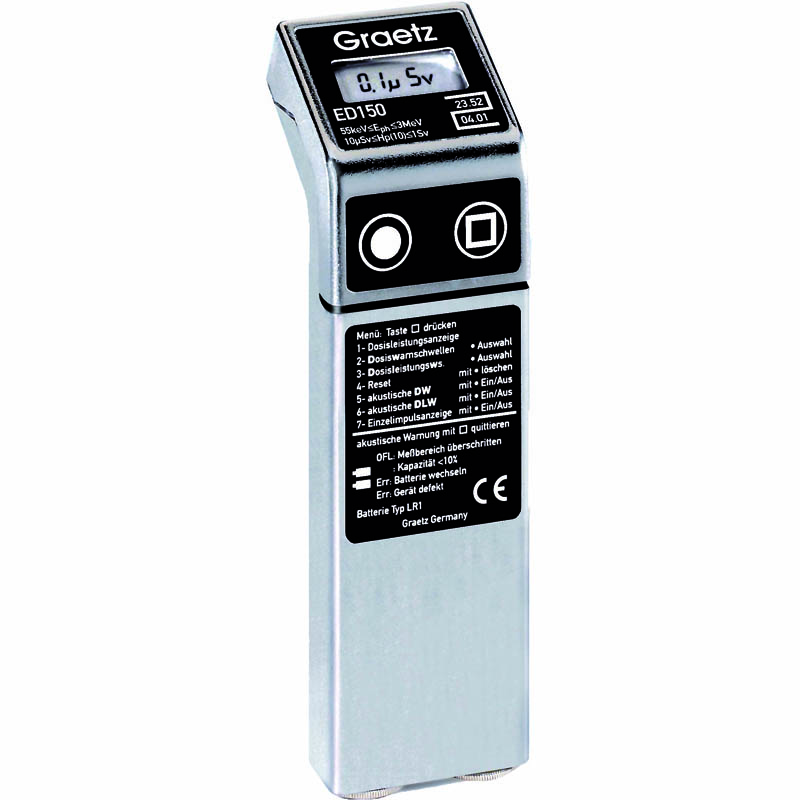

Electronic personal dosemeter Graetz  ED 150  with dose rate indication and alarm function

              The gamma dosimeter Graetz ED150 is designed to measure gamma- and x-radiation in accordance with DIN 6818. As a detector, the gamma dosimeter ED150 features an energy-compensated Geiger-Müller-counting tube. The alarm-thresholds – which are predetermined by the manufacturer – are comply with the common guidelines in radiation protection and ensure that the bearer of the gamma dosimeter ED150 is always able to detect a possible endangerment by exposure to nuclear radiation. The gamma dosimeter ED150 captures the nuclear radiation in a dihedral angle of 180° in front of the bearer’s body. Therefore, an accurate and certain measurement is guaranteed. In addition to the optical and digital display on the gamma dosimeter, an acoustic single-pulse-detection can be switched on. Via two buttons, the individual measuring parameters or menu items can be selected and traced on the display of the gamma dosimeter ED150. Naturally, the stored measuring data and selected parameters of the gamma dosimeter ED150 are preserved even after a battery-change. The gamma dosimeter graetz ED150 can be used regardless of atmospheric conditions. Even a temporary submergence of less than 0.5 m depth does no harm to the gamma dosimeter ED150.

•  Measures gamma- and x-radiation via  measuring variable Hp (10)
• Energy-compensated Geiger-Müller-counter
• Display for dose efficiency
• 180° radiation capture
• Constant self-monitoring
• Data storage preserved despite battery change
• Adjustable measuring interval
• 4 alarm-thresholds that are either preset or ca be customer-specified on order
• Handy enclosure
• Easily decontaminated IP67


•
