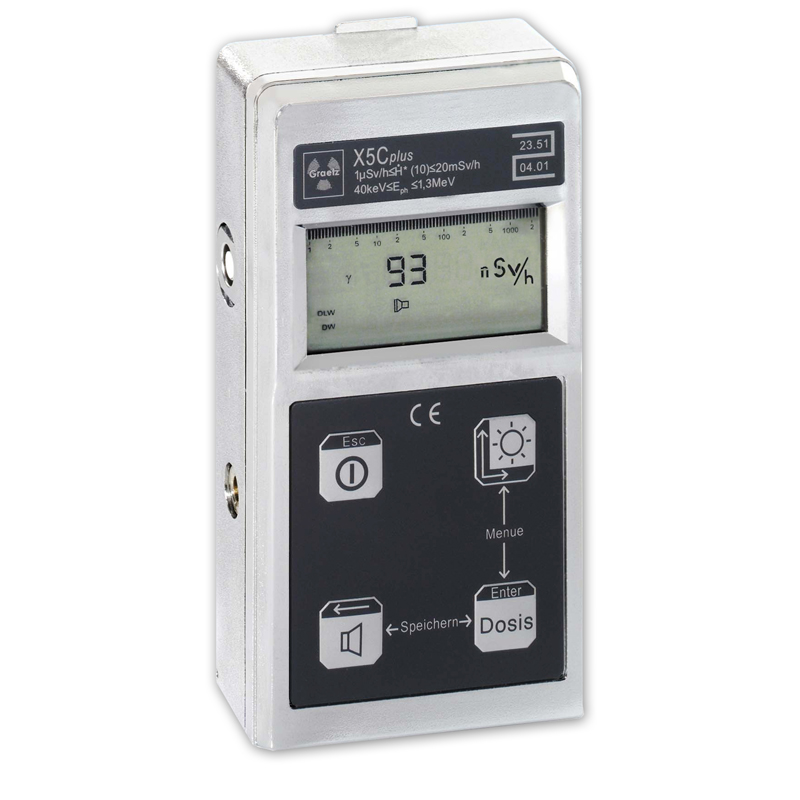

X5C Plus Dose Rate Measuring System

X5C Plus Dose Rate Measuring System
  • X5C Plus Dose Rate Measuring System

Specifications

Dose rate measuring system with dose indication and function for personal raidation protection when handling ionising radiation, with RS-232 interface and connection facility for an external probe.

  • dose rate meter for measuring gamma radiation and X-rays
  • measurand: Ḣ*(10) (ambient dose rate equivalent)
  • detector: energy compensated GM tube
  • large, digital indication of measured values on LC-display (illuminable)
  • selectable dose rate or dose indication with integration time
  • additional quasi-analogue indication of dose rate (3.5 decades, logarithmic bargraph)
  • indication of peak and average dose rate value
  • 4 free programmable dose and dose rate alarm thresholds
  • automatic or manual storage of measured dose rate values together with date and time
  • evaluation/indication of residual time for staying in the current radiation field with regard to the maximum allowed dose
  • switchable acoustic single-pulse indication
  • clear menu-driven user navigation for easy operation, partly secured by password
  • storage of set parameters even when the device is switched off or during battery change
  • continuous self-testing and monitoring ensure high reliability
  • compact metallized housing made of high impact-proof plastic, easy to decontaminate, protection class IP67
  • RS-232 interface

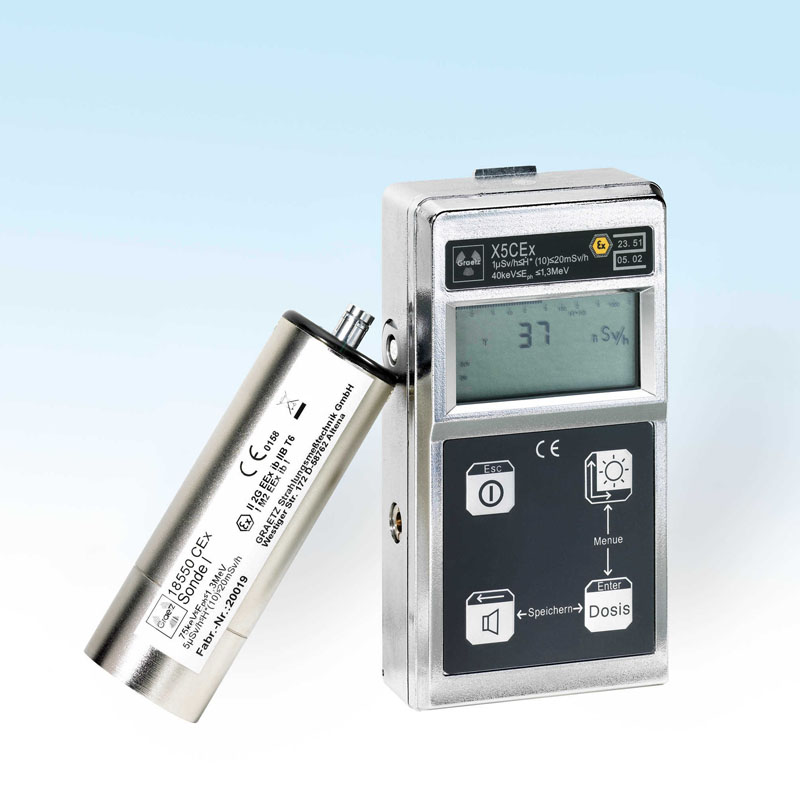

  • basic unit can be combined either directly or by probe cable with various probes (see separate leaflet): - for extending the measuring range up to 10 Sv/h - for detecting α-, β- and γ-radiation - for measuring in liquids - for measurements at „hard-to-get-to“ places - Telescope Probe DE for measurements from a safe distance - Scintillation probe 2002 for measuring low dose rates
Characteristics:
Radiation type: gamma and roentgen
Calibration With Gamma Cs 137 radiation
Dose ranges:
- dose
- dose rate
- PTB approved dose

0 nSv/h ≤ Ḣ*(10) ≤ 20 mSv/h
0 nSv – 10 Sv
1,0 µSv/h ≤ Ḣ*(10) ≤ 20 mSv/h
Energy range: 40keV – 1,3 MeV
Dose alarm thresholds 4 preset values in the range of 1 µSv – 10 Sv
Dose rate alarm thresholds 4 preset values in the range of 1 µSv/h – 1.5 Sv/h
Temperature range:  -30°C ~ +60°C
Protection type IP 67
Dimensions 152 x 82 x 39 mm
Weight approx. 400 gr.
Power Supply 9V battery 6LR61
Authorizations PTB (Physikalisch-Technische Bundesanstalt)
ASR nr. VI 203/2009
ISO 9001
Warranty 1 year
Optional probes:
- DE telescope probe ( 920 ~ 4000 mm length)
Measuring range: 50 µSv/h – 1 Sv/h
Measuring range: 0,5 mSv/h – 10 Sv/h
Measuring range: 150 nSv/h – 200 µSv/h
Measuring range: 10 µSv/h – 20 mSv/h
Measuring range: 1,5 µSv/h ≤ Ḣ*(10) ≤ 10 Sv/h
