QNix 4200 Coating Thickness Gage - A handy and robust gage for easy and fast coating thickness measurements -for all paint and automobile applications on steel and iron.

Experts immediately recognize the signature of Dr.Nix Automation, such as practice-oriented properties:

Extremly Precise

High precision measurement across the entire measurement range.

Simple Use
Calibration / Measurement with a single button.
One-hand operation.

Innovative Technology

Hall Sensor

Wide range of use

Probe for measurements on ferrous metals.

Protected Measurements
Smooth ruby tip to protect the probe and the measuring surface.

Just perfect!
Precise measurements on steel and iron with the QNix 4200 thickness gauge are perfect.
No calibration required. High precision over the entire measurement range: Fe 0-5000 μm.

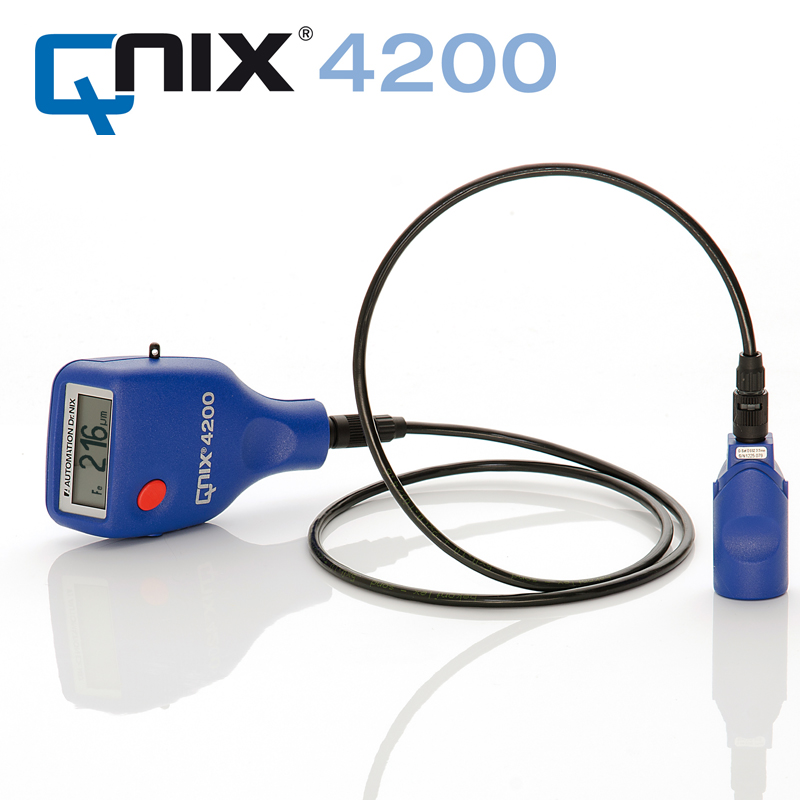

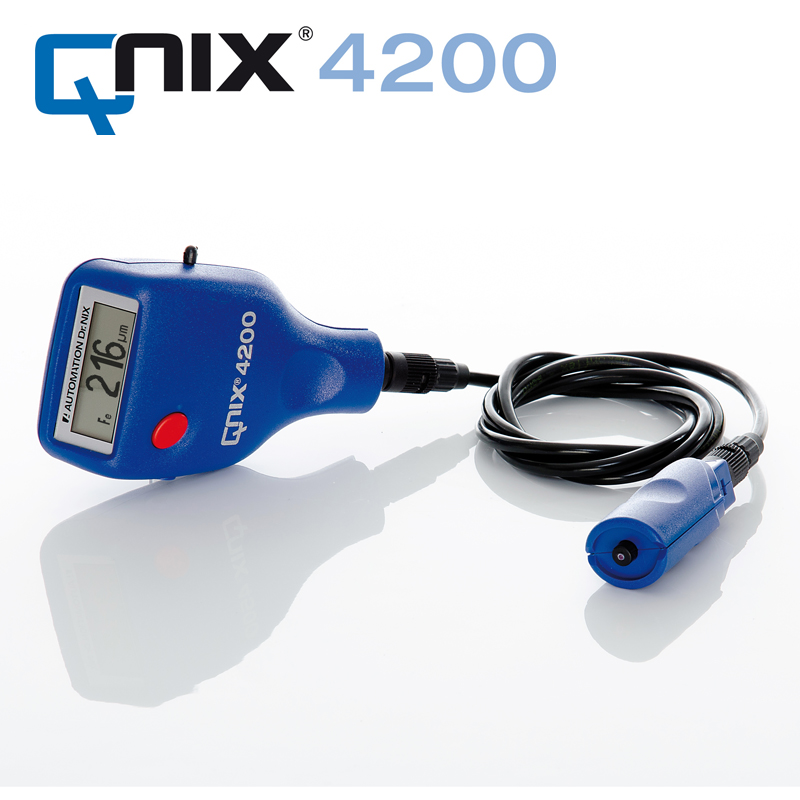

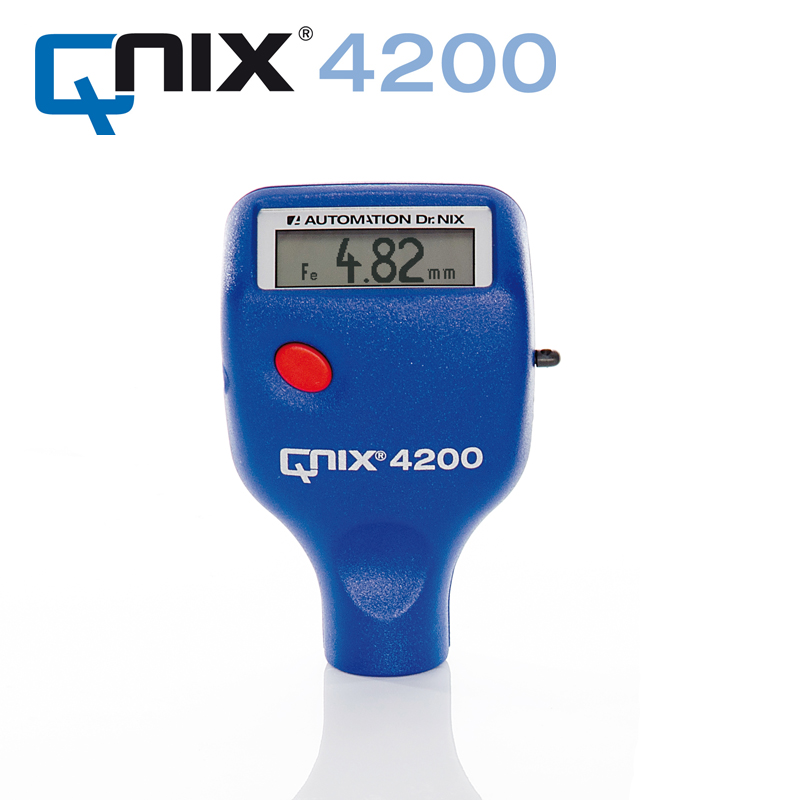

The QNix 4200's sensitive probe is fully integrated into this extremely small, lightweight and comfortable device - optionally available as a cable probe. The readable LCD displays information about the measurements, battery status, operation mode and serial number.

Advantages
  • Probe for standard applications - easy, reliable and fast measurements.
  • Easy to use with one hand. A single operating button.
  • No calibration required.
  • Start / stop automatically.
  • High precision over the entire measuring range: Fe 0-5000 μm.
  • Wide range of applications for non-destructive measurements on steel and iron.
  • Technology demonstrated:Hall Sensor.
  • A beep confirms the measurement.
  • Integrated Fe probe with wear-resistant ruby tip.

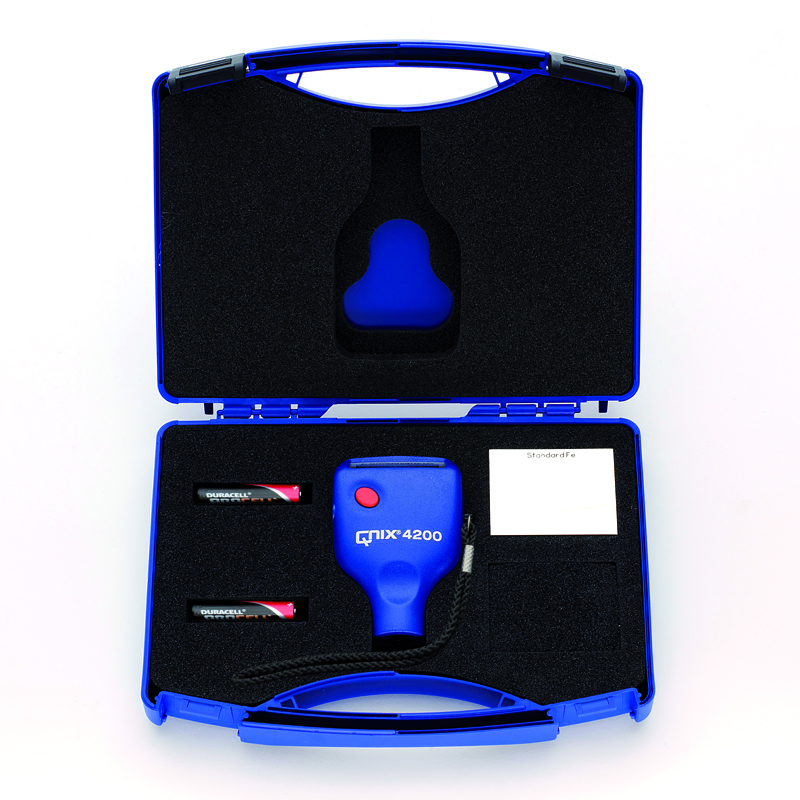

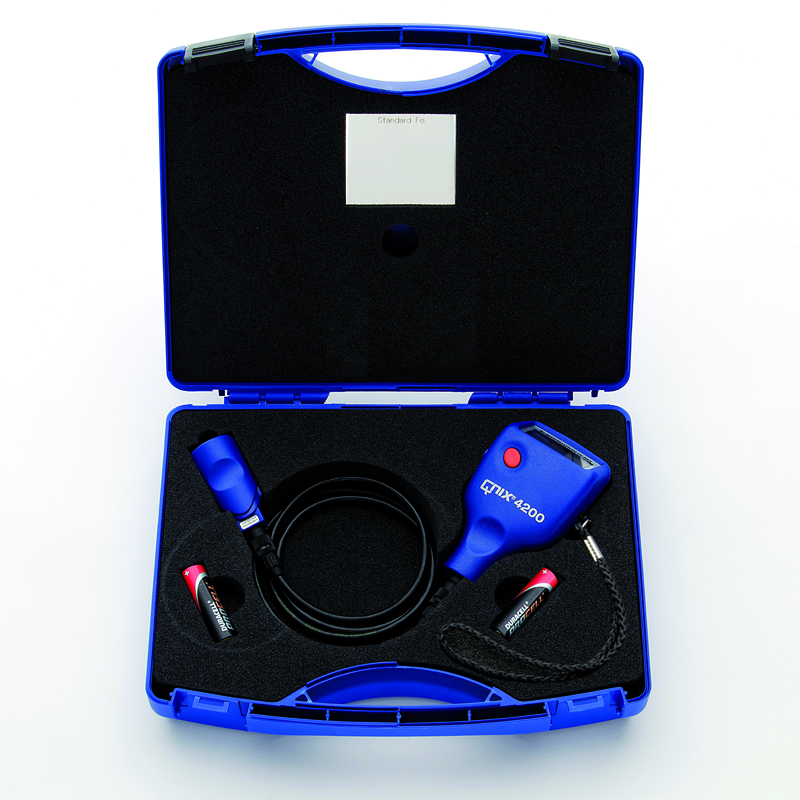

Scope of Delivery
  • QNix 4200 measuring device with integrated probe or cable probe.
  • Box with reference plates.
  • AA alkaline batteries: 2 x 1.5V
  • Calibration certificate.
Technical Data:
Principle of operation Fe:Magnetic Flux/Hall Effect (Fe*)
Standards DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091

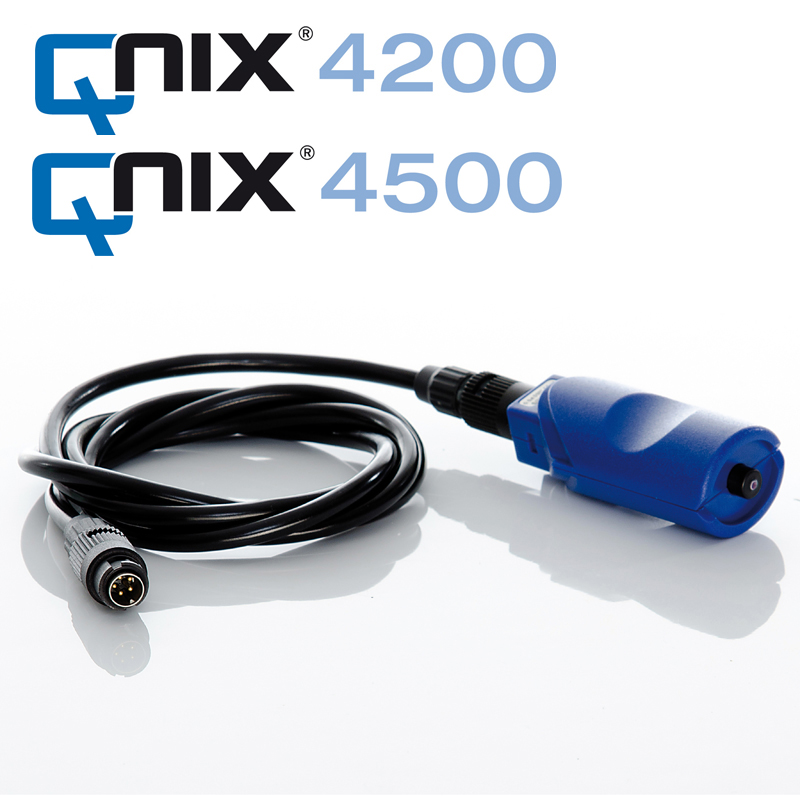

Probe Type Integrated or - optionally - probe with 1m cable
Measuring Range Fe: 0,0–5000 μm
Metric System μm/mil Yes
Measuring Frequency Single Measurement: 850 ms
Metric Display μm in the range of 0-999 μm,
mm in the range of 1,00-3,00 mm (1,00-5,00 mm)
Resolution 0,1 μm in the range of 0,0–999 μm
0,01 mm in the range of 1,00-3,00 mm (1,00-5,00 mm)
Accuracy Acc. to Automation Dr.Nix Standards
  3 mm 5 mm
Fe < 2mm ±(3%*+2μm) ±(3%*+2μm)
Fe > 2mm ±(3%*+2μm) ±(5%*+2μm)
(*) din valoare
Minimum measuring Area Ø 25 mm
Minimal Curvature convex: 5 mm, concave: 25 mm
Minimal Substrate Thickness Fe: 0,2 mm
Display Digital LCD
Operating Temperature 0 – 50°C (32 – 122°F)
Storage Temperature -10° C – 60°C (14 – 140°F)
Battery 2 batteries 1,5 V (tip AA alcaline)
Dimensions (L x W x H în mm) 100 x 60 x 27 (with integrated probe)
Weight Incl. the Battery With Integrated Probe: 105 g
With probe with cable: 147 g
