SITE X Directional
Specifications

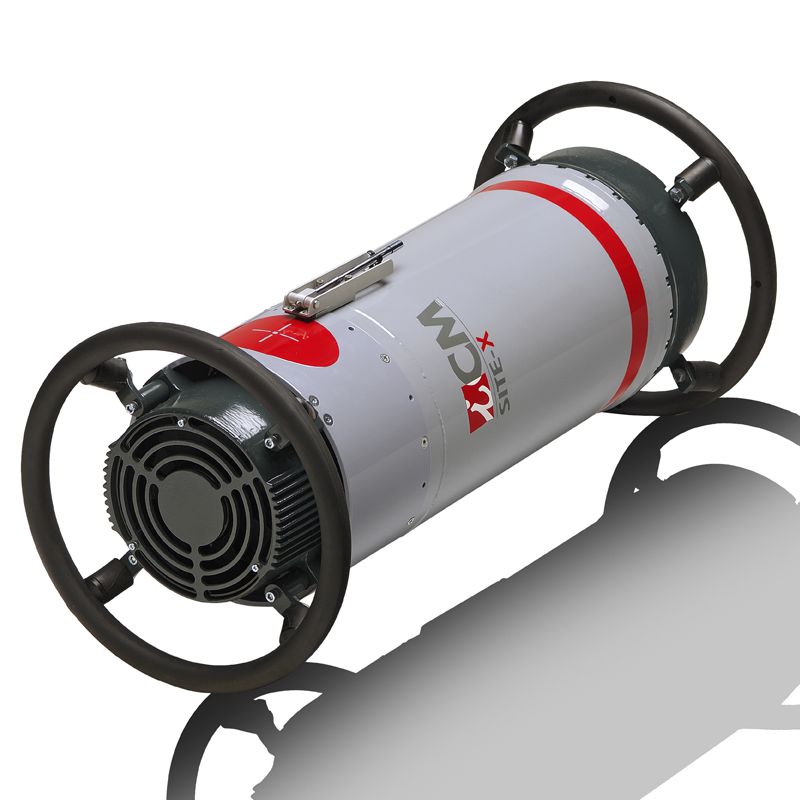

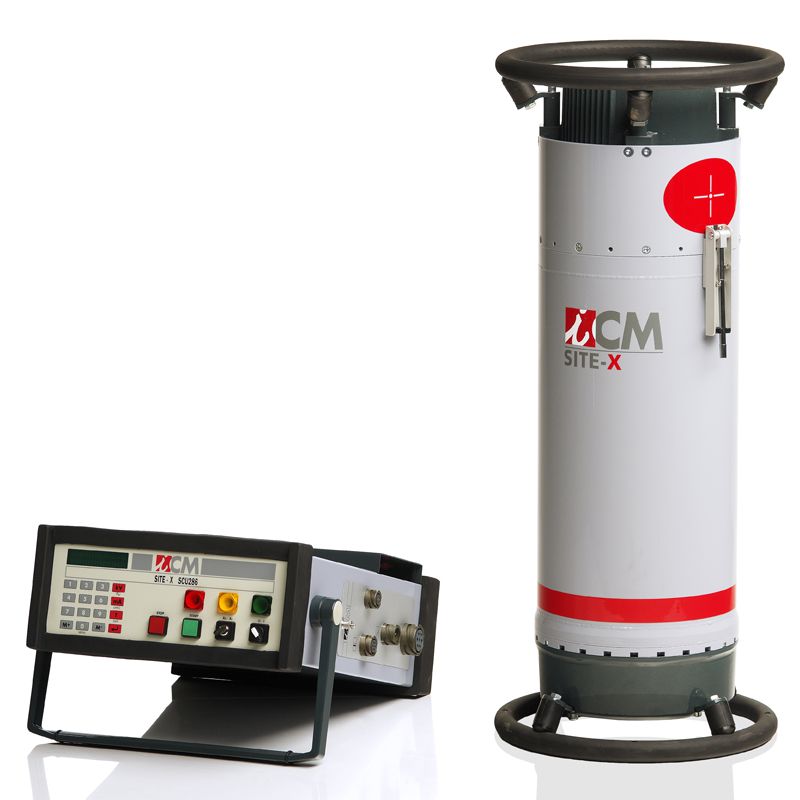

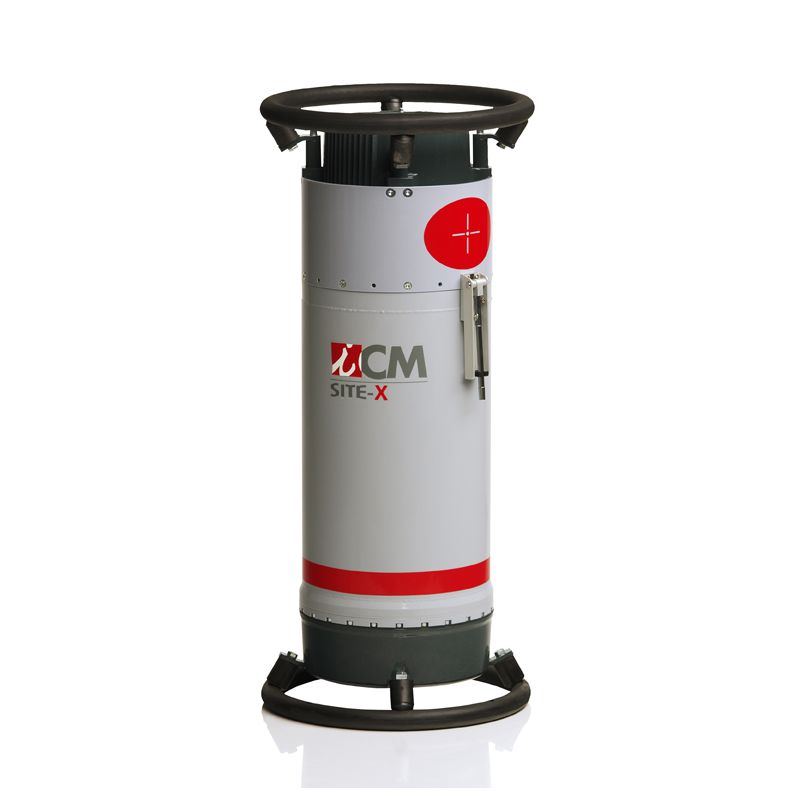

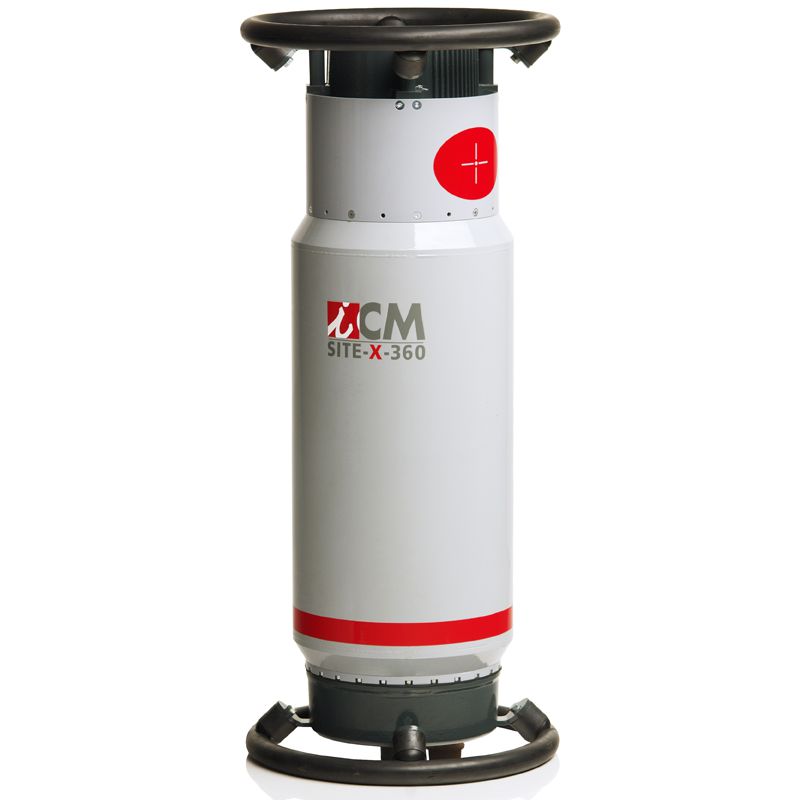

SITE-X Directional Models
A SIMPLE & EFFECTIVE PRINCIPLE
All SITEX and SITEXS units contain a rod anode. This is the focal spot that is outside the SF6-insulated high-voltage generator. As maximum advantages are derived from this ideal configuration, for one and the same thickness, the volume of lead required for standard radiation protection is considerably reduced.
Consequently, the reduced weight that is achieved makes it possible for further investments to be made in the quality and general improvement of the level of performance (robustness, cooling, accessories etc).
We can confirm that SITEX and SITEXS are among the lightest portable X-ray generators available to the market.
PERFORMANCE
A high-efficiency heat exchanger has been developed in collaboration with the Institute of Thermo-mechanics at the University of Liege. This results in the possibility of a 100% working cycle under completely safe conditions, whilst simultaneously reducing the anode temperature by 50%.
DETAILS THAT SIMPLY IMPROVE EVERYTHING
The SITEX directional generators are equipped with an internal ‘carousel’. This contains a lead cap and 4 diaphragms that are calibrated for the films that are used the most. Ensuring protection from accidental on-site losses and weighing in total a mere 1.0 kg, this very practical device replaces approximately 20 kg of fragile and space-consuming accessories.
SiteX Directional | UM | D1802 | D2008 | D2258 | D2506 | D3006 | D3206 | D3605 |
---|---|---|---|---|---|---|---|---|
Output voltage range | kV | 60~180 | 70~200 | 70~225 | 70~250 | 90~300 | 90~320 | 120~360 |
Output voltage step | kV | 1 | ||||||
Tube current range | mA | 1 ~ 3 | 1 ~ 8 | 1 ~ 6 | 1 ~ 5 | |||
Tube current range at full output | mA | 2 | 8 | 6 | 5 | |||
Tube current selection step | mA | 0.1 | ||||||
Radiation Geometry | - | Directional | ||||||
Max. useful angle of the X-ray beam | (°) | 60°x40° | ||||||
Dimension of the optical focal spot | mm | 0.8x0.8 | 2.5x2.5 | 2.6x2.6 | ||||
Inherent Filtration | mm | Echiv.3.5(Al) | 2.5(Al) + 0.4(Ni) | |||||
Carrousel of internal diaphragms with lead cap | - | No | Yes (4+1) | |||||
Working cycle at 40°C ambient temp. | % | 50 | 100 | 60 | ||||
Operating temperature range | °C | -25 ~ +70 | ||||||
Storage temperature range | °C | -40 ~ +80 | ||||||
SF6 insulation pressure at 20°C | kg/cm2 | 5.0 | ||||||
Cooling fan supply voltage | VDC | 24 | ||||||
Weatherproof level | - | IP65 | ||||||
Penetration into steel at max power (FFD=700mm/Film D7pb/D=1.5/T=20 min) |
mm Fe | 24 | 41 | 49 | 54 | 70 | 76 | 82 |
Guard rings | - | Yes | ||||||
Position of interconnection socket | - | Radial | Axial/Radial | |||||

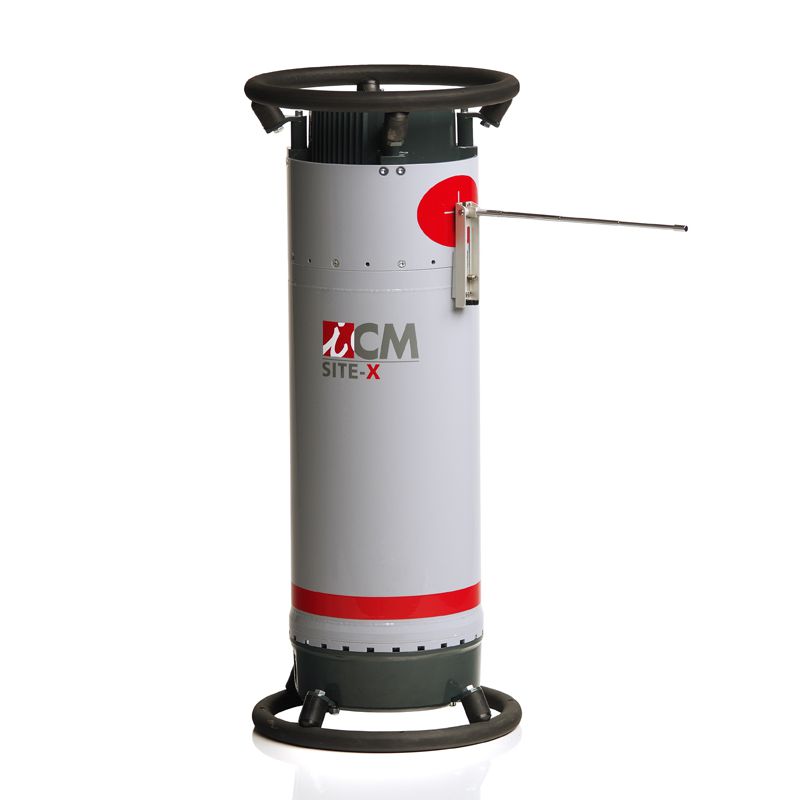

Number of telescopic centring device (FFD=700mm) | - | - | 1 | |||||
Max. leakage dose at 1m according to DIN at full output | mSv/h | 2.5 | 10 | |||||
Microcontroller HT measurement circuit (kV and mA) | - | Yes | ||||||
Overall Dimensions | mm | Ø250x573 | Ø346x771 | Ø346x831 | Ø400x930 | |||
Total weight without guard rings | kg | 9.5 | 28 | 31 | 46 |
