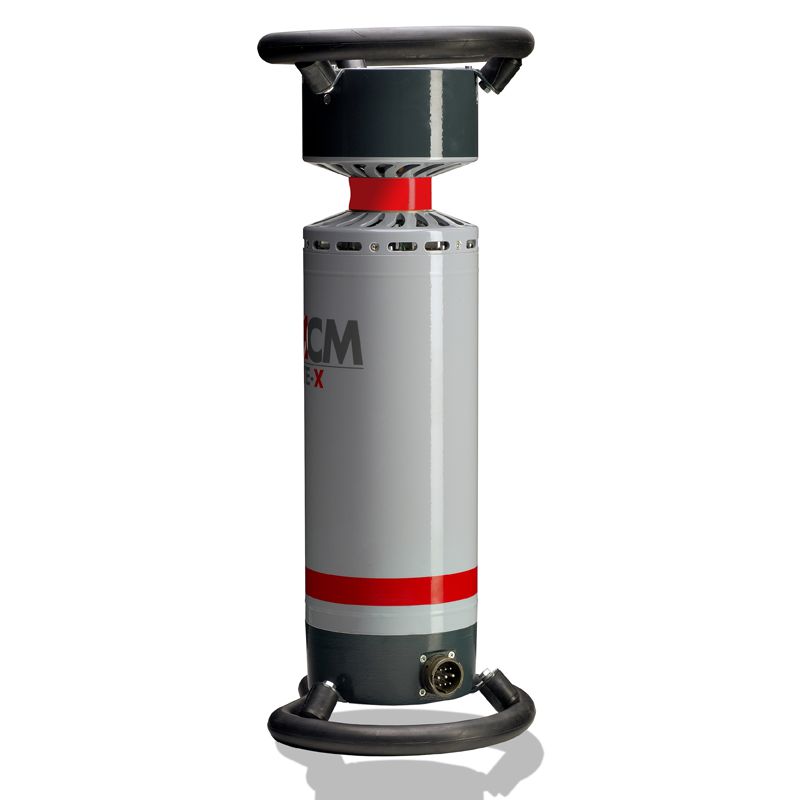

SITE XS Panoramic
Specifications

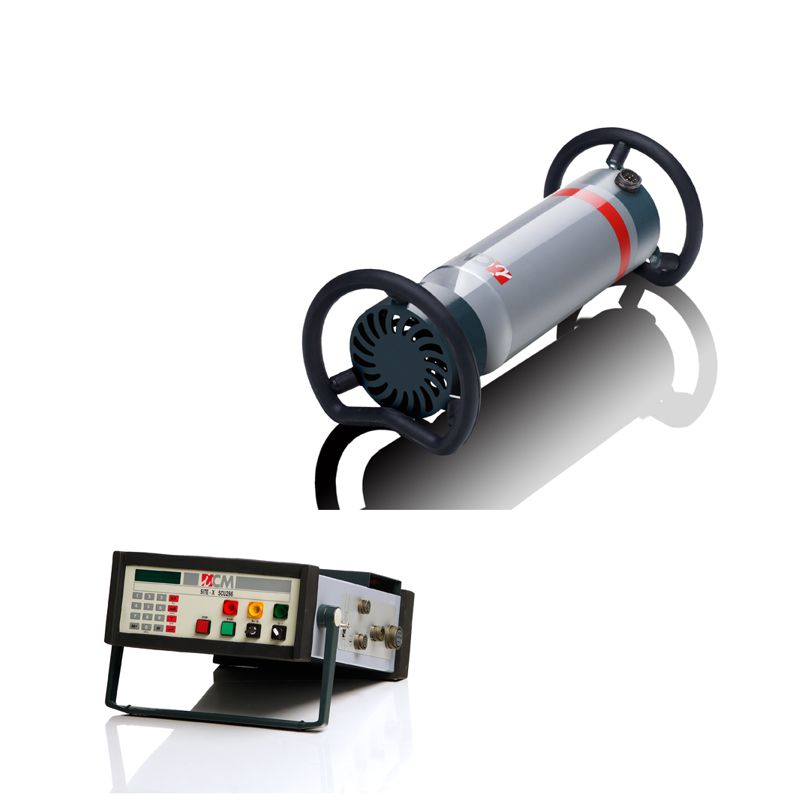

SITEXS, THE ‘EXTRA-SMALL’…
These ‘XS’ X-ray generators are in fact reduced versions of the corresponding SITEX units available in 200, 225 and 250 kV versions and provide considerably more compactness.
A SIMPLE & EFFECTIVE PRINCIPLE
All SITEX and SITEXS units contain a rod anode. This is the focal spot that is outside the SF6-insulated high-voltage generator. As maximum advantages are derived from this ideal configuration, for one and the same thickness, the volume of lead required for standard radiation protection is considerably reduced.
Consequently, the reduced weight that is achieved makes it possible for further investments to be made in the quality and general improvement of the level of performance (robustness, cooling, accessories etc).
We can confirm that SITEX and SITEXS are among the lightest portable X-ray generators available to the market.
PERFORMANCE
A high-efficiency heat exchanger has been developed in collaboration with the Institute of Thermo-mechanics at the University of Liege. This results in the possibility of a 100% working cycle under completely safe conditions, whilst simultaneously reducing the anode temperature by 50%.
ENSURING PERFECT HOMOGENEITY
The SITEX and SITEXS panoramic X-ray tubes come equipped with a patented automatic system of beam correction. Perfect homogeneity is ensured thanks to a real time feedback loop adjustment and the EMR value achieved on the films is < 5%.
| SiteXS Panoramic | UM | XS-C2004 | XS-C2254 | XS-C2504 |
|---|---|---|---|---|
| Output voltage range | kV | 70~200 | 70~225 | 70~250 |
| Output voltage selection step | kV | 1 | ||
| Tube current range | mA | 1 ~ 4 | ||
| Tube current range at full output | mA | 4 | ||
| Tube current selection step | mA | 0.1 | ||
| Radiation geometry | - | Panoramic | ||
| Maximum useful angle of X-ray beam | (°) | 360 x (2x20) | ||
| Dimension of optical focal spot | mm | ø5 x 0.8 | ||
| Inherent filtration | mm | 2.5(Al) + 0.4(Ni) | ||
| Carrousel of internal diaphragms with lead cap | - | no | ||
| Working cycle at 40°C ambient temp. | % | 100 | ||
| Operating temperature range | °C | -25 ~ +70 | ||
| Storage temperature range | °C | -40 ~ +80 | ||
| SF6 insulation pressure at 20°C | kg/cm2 | 5.0 | ||
| Cooling fan supply voltage | VDC | 24 | ||
| Weatherproof level | - | IP65 | ||
| Penetration into steel at max power (FFD=700mm/Film D7pb/D=1.5/T=20 min) |
mm Fe | 32 | 39 | 45 |
| Guard rings | - | yes | ||
| Position of interconnection socket | - | Axial/Radial | ||
| Number of telescopic centring device (FFD=700mm) | - | - | ||
| Max. leakage dose at 1m according to DIN at full output | mSv/h | 2.5 | 10 | |
| Microcontroller HT measurement circuit (kV and mA) | - | Da | ||
| Overall dimensions | mm | ø305x718 | ||
| Total weight without guard rings | kg | 19 | ||
