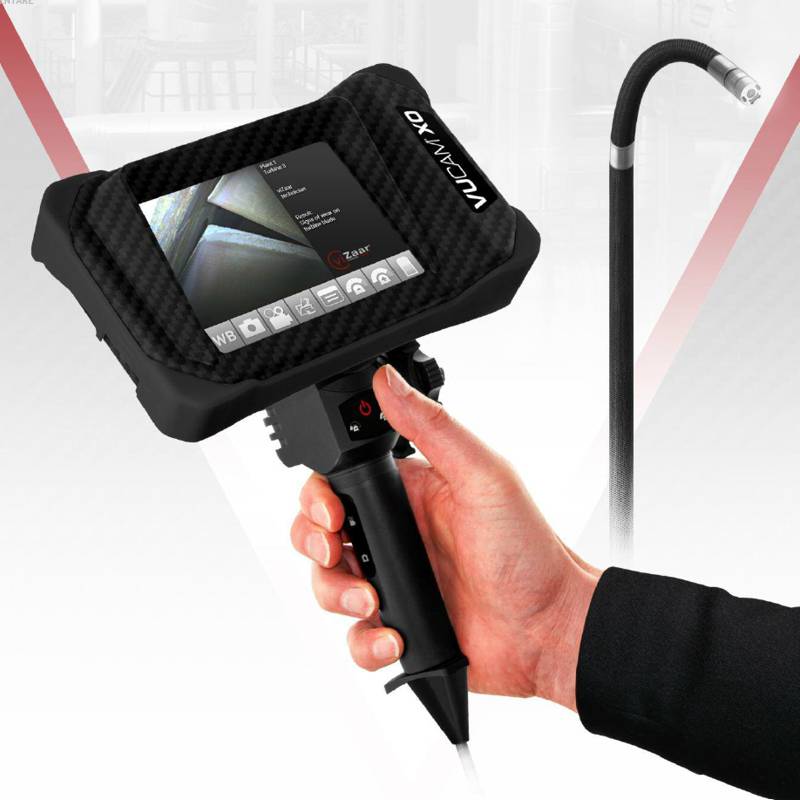

VUCAM XO Mobile Industrial Video Borescope
Specifications
THE NEW VUCAM® - easy-to-use, portable and robust.
With the VUCAM XO a budget price doesn’t mean making a quality compromise. Users will recognize the VUCAM XO as a well-constructed and robust piece of industrial equipment. The image is bright and sharp and the backbone technology makes operation intuitive and reliable. Clear touchscreen navigation eliminates menu congestion and impractical controls. Articulation of the Borescope bending section is controlled and exact. Articulation steering is readily learned and understood with minimal training and without time consuming familiarization. viZaar has been manufacturing Borescopes for years. The manufacturing art and expertise that we have acquired has been applied to the VUCAM XO to produce a light-weight Borescope that is sturdy and reliable.

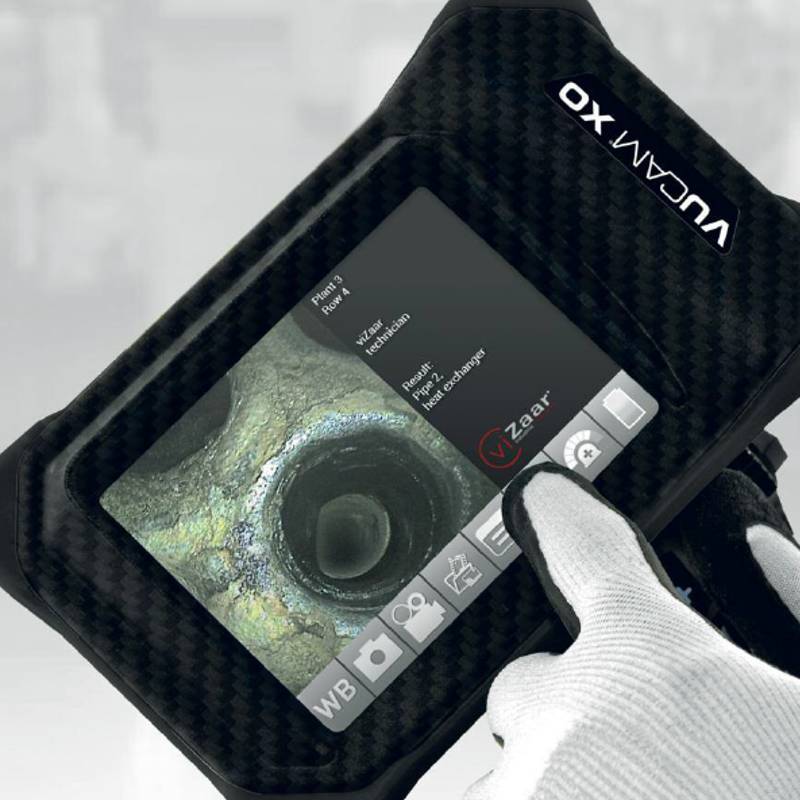

► UP TO DATE TOUCH SCREEN
640 x 480 px, 5.7“ high resolution, LED backlight TFT. Modern graphic user interface operation.
► INSPECTION RESULT DOCUMENTATION
A touch on the screen calls the full featured keyboard. The user name, application & findings can be documented outside the inspection image & saved to SD.
► SNAPSHOTS DURING THE VIDEO RECORDING
Digital JPEG snapshots during the video recording shorten your documentation & post processing effort.
► DIGITAL IMAGE FREEZE FUNCTION
Freeze an image live or during the recording process to analyze, consult or add text before saving the file for your own documentation.
► DIRECT DATA RECALL
Is everything complete and in focus? Recall the last saved inspection file with just a tip on the touch screen to ensure your data integrity.
► ELIMINATE REVISITS WITH FLASH BACK BUFFER RECORDING
Many areas of interest are passed by while inspecting. By the time a potential problem has been realized, revisits are needed for analysis and documentation. Save time & money with VUCAM® constantly buffer capturing.
► SD CARD
Perfect documentation of high resolution MPEG4 video-recording and JPG high quality images.
► Direct Access Buttons
Ergonomicallylocatedunder thefingertip.Themostfrequentlyusedfunctions are activated with a simple click
.:: Illumination control
:: Digital snapshot
:: Video recording
:: Freeze image
:: Flashback recording
:: Video snapshot
:: On / Off button
:: Toggle / operate all other system menu functions
► FREE TILT DISPLAY
Adjust the display to the desired position, to have a perfect view of your inspection results.
► COMPLETE CARBON FIBRE/ALUMINIUM CONSTRUCTION
► HIGH POWER LED LIGHT SOURCE
► PRECISE CAMERA CONTROL

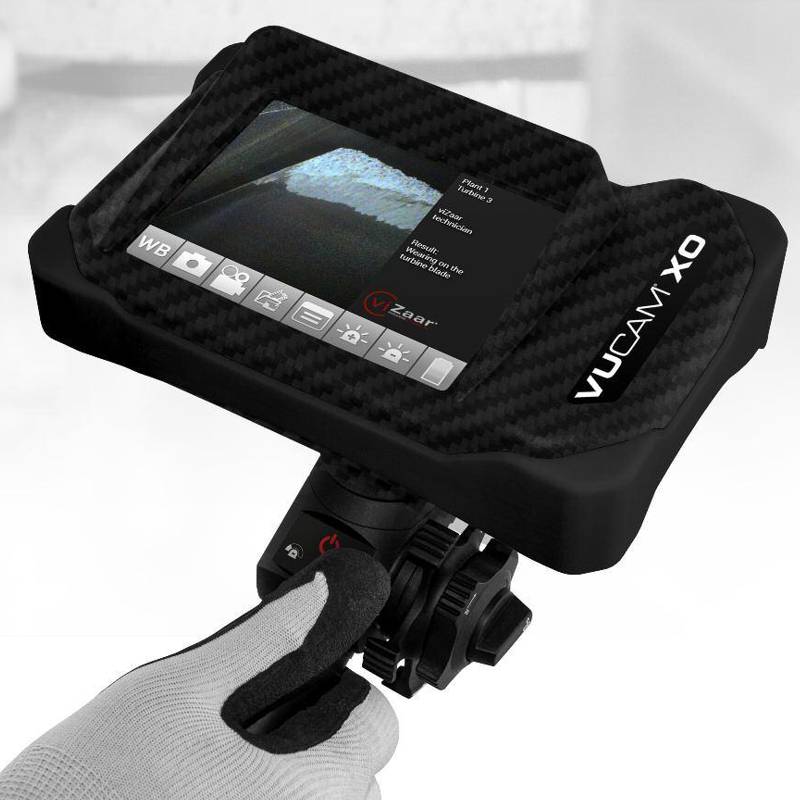

The X-WAY 360° articulating camera head precisely controlled by the robust aluminium steering knobs.
► BATTERY OPERATED
Portable and mains power independent inspections With the field replacable LiFePo high capacity power concept!
| Probe | |||
| Working Length | 2,2 m / 7.2 ft | 3,3 m / 10.8 ft. | 6,6 m / 21.6 ft. |
|---|---|---|---|
| Diameter | 6,0 mm / 0.23“ | 6,0 mm / 0.23“ | 6,0 mm / 0.23“ |
| Articulation | 130° | 120° | 100° |
| Probe construction | Four layer, final layer cut resistat tungsten | ||
| Optical System | |||
| Direction of view (DOV) | Standard 0° forward, optional with tip adapter 90° side view with 100° field of view or far focus 45° side view* | ||
| Field of view (FOV) | Standard 45°, optional with optical adapter 100° wide angle | ||
| Focus Range | 3 mm to endless depending on optic adapter chosen | ||
| Ilumination | |||
| Type | Special high power hybrid LED glass fiber ilumination. Digital phase width light control auto / manual. | ||
| Light power | High efficiency LED illumination | 6 Watt | Daylight quality 6.500 K | ||
