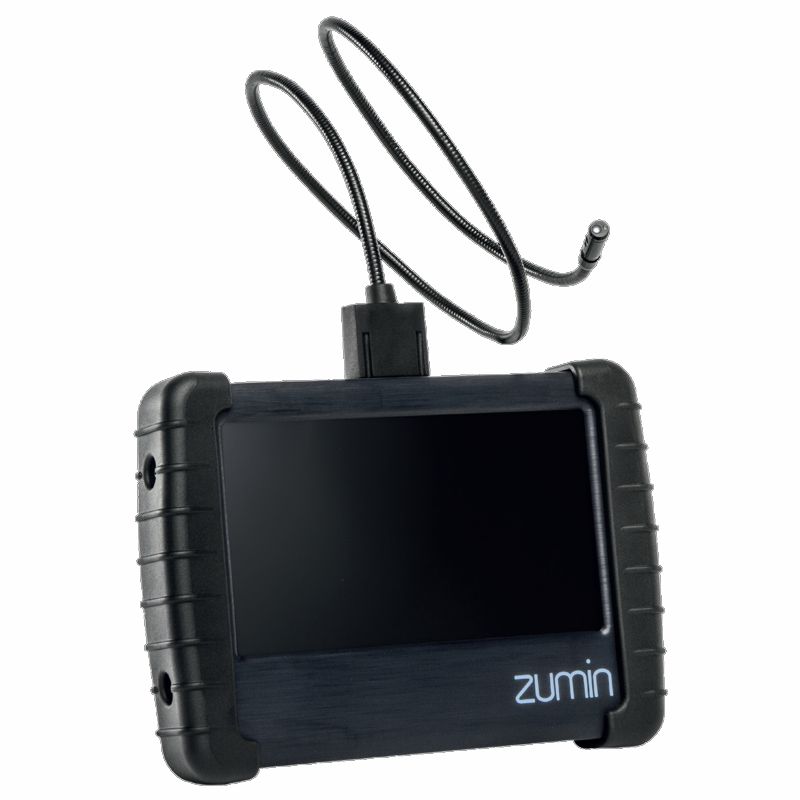

ZUMIN CDO150 Portable Borescope
Specifications
Attached files:
The cdo 150 offers the latest technology avalaible in the borescope category. The 7’’ (18 cm) touchscreen display offers superior image rendering and a simple user experience.
Technical Data:
Optimal Viewing Distance: 1” to 12” (2.5 cm - 30 cm)
Power Supply: Li-Ion Battery 3,7V, 4200 mAh
Estimated battery run time: 3 - 5 hours
Weight: 0.52 kg
Sensors pixels: “640 x 480 (digital) 720 x 480 (analog)”
FOV: ~ 60 degrees (imager dependent)
Video & photo resolution: 640 x 480
Dimensions: 184 x 144 x 27 (mm)
Temperature: 0° C to 45° C
Humidity: 0,5% to 95% non-condensing
Storage Temp: -20° C to 70° C
Water Resistance: Imager to 1 m depth
Power Supply: Li-Ion Battery 3,7V, 4200 mAh
Estimated battery run time: 3 - 5 hours
Weight: 0.52 kg
Sensors pixels: “640 x 480 (digital) 720 x 480 (analog)”
FOV: ~ 60 degrees (imager dependent)
Video & photo resolution: 640 x 480
Dimensions: 184 x 144 x 27 (mm)
Temperature: 0° C to 45° C
Humidity: 0,5% to 95% non-condensing
Storage Temp: -20° C to 70° C
Water Resistance: Imager to 1 m depth

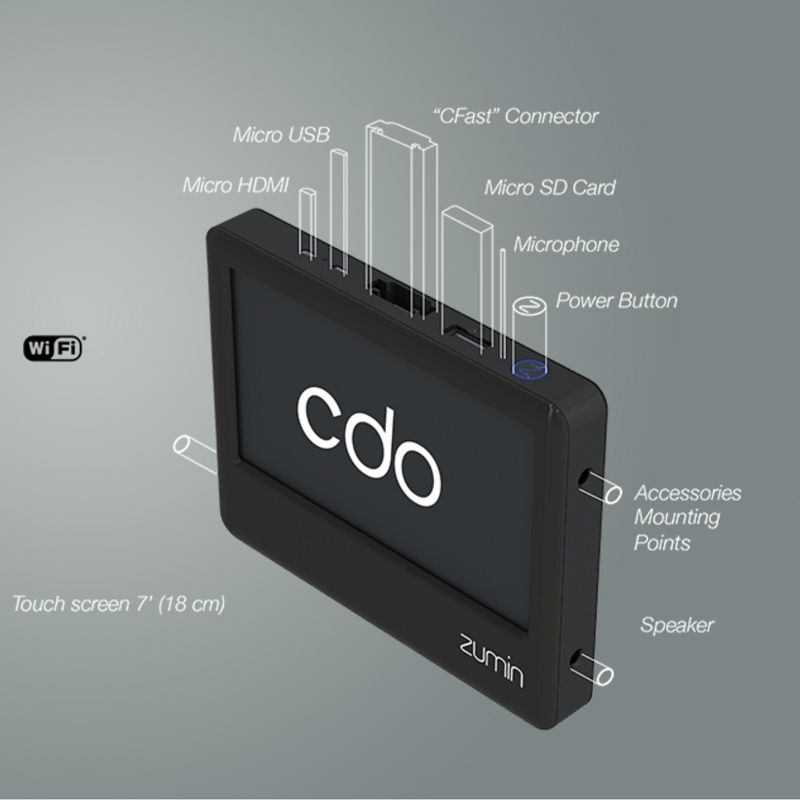

Features:
7” (18 cm) TFT LCD Display with a native resolution of 800 x 480
Digital camera technology
“CFAST” imager connector
File naming for convenient file management
Text annotation aids in documentation
Low optical distortion provides superior image quality
Capture video at a rate of 15 fps
Digital zoom is 2X executed in 10 steps
Micro-USB connector for uploading images
Micro-HDMI video out
External micro-SD Card access
External micro-USB access
D/C plug allows the unit to be used while battery is being charged
Microphone and speaker for voice-over annotations
WIFI connection
Digital camera technology
“CFAST” imager connector
File naming for convenient file management
Text annotation aids in documentation
Low optical distortion provides superior image quality
Capture video at a rate of 15 fps
Digital zoom is 2X executed in 10 steps
Micro-USB connector for uploading images
Micro-HDMI video out
External micro-SD Card access
External micro-USB access
D/C plug allows the unit to be used while battery is being charged
Microphone and speaker for voice-over annotations
WIFI connection
