ZERO 400 IP54 Stationary Mercury Vapour UV Lamp
Specifications

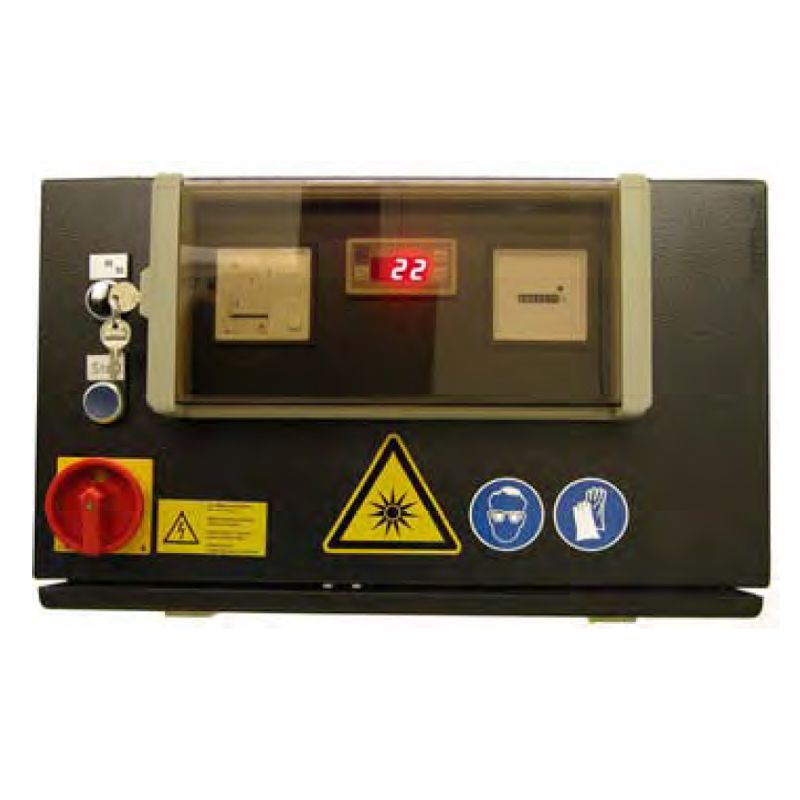

The steel housing of the lamp integrates all electrical components like starting controller, follow-up relay, ammeter, operating time meter, mains switch, protective devices, temperature monitoring device with display, ventilator, connector block and aluminum case for UV radiant (400 W). The Oilflex 540 P is used for the main power supply.
The ZERO 400 IP 54 lamp is equipped with a UV-B long-pass filter which cuts off the emission of UV-B and UV-C, protects the bandpass filter and limits the glass surface temperature to 80 °C. The lamp can be switched between two levels of UV irradiation intensity and thereby two risk classes.
Technical Data:
| Supply Voltage: | 230V - 50/60Hz |
| Operating Current: | aprox. 3.3 A |
| Warm-up Time: | approx. 3-4 min |
| Recovery Time: | < 10 min. |
| UV source: | 1 x HTC 400 |
| UV source lifetime: | approx. 1500 h |
| UV intensity at 400 mm distance: | Risk class II – 3500 µW/сm2 Risk class III - 5500 µW/сm2 |
| Wavelength: | 365 nm |
| Emission half-width: | approx. 27 nm |
| Risk class acc. to EM6: | II / III (switchable) |
| Weight: | approx. 31 kg |
| Dimensions: | 500 x 500 x 300 mm |
| Protection Class: | IP 54 |
