Cross Yoke 60

Specifications

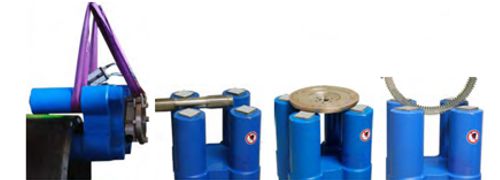

         The Cross Yoke 60 is used for contact and non-contact magnetization of different parts. It is powered by two equipotent alternating currents, dephased by 90°, thus producing a rotating magnetization vector whose field strength is equal in all directions. This magnetization technique enables the detection of discontinuities of any orientation during
only one operation. Therefore the Cross Yoke 60 is particularly suitable for testing of tube ends, tooth gears and different cylinder parts. The device is completely sealed, being fed with 2 x 42 V alternating voltage by an additional transformer.

Technical Data
	Pole Spacing, mm	360х360
	Pole Cross Section, mm	60x60
	Dimensions, mm	330х500х330
	Tangential Field Strength, A/cm	48
	Liftin Force, N	>600
	Operating Current, A	3x50
	Duty Cycle, %	90
	Weight, kg	80
	Protection class	IP 54
	To be delivered with control desk
