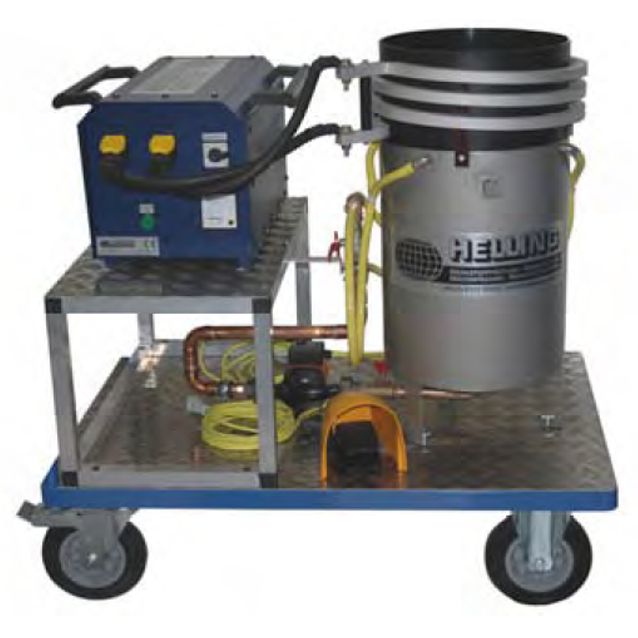

HELLCHAIN 1400 Chain Testing system

Specifications

Mobile chain testing system according to UVV 18.4 / DIN 685 part 5 consisting of:

      - Transport car designed for HELLMAG 3000 installation
      - Magnetic particle suspension collecting tank with integrated showering arrangement
     - High-power pump for magnetic particle suspension
     - Closed magnetizing coil  350 mm mounted at the suspension-collecting tank
     - HELLMAG 3000 heavy current generator
     - 2 sets (4 pcs.) connecting cables 70 mm²
     - Foot switch for HELLMAG 3000 operation
     - UV-Inspector 711 UV LED hand lamp.
