Battery Powered Hand Yokes

Specifications

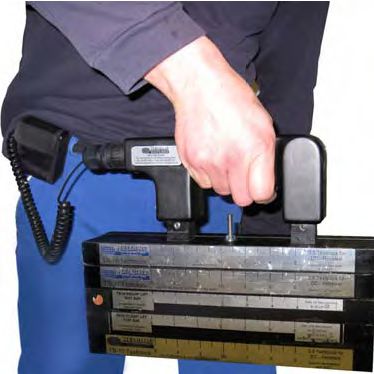

             The portable HANSA–DC yokes are battery-powered, thus network independent, direct current magnetizing devices for mobile operation – also under field conditions. The HANSA – DC yokes have a reduced weight and a comfortable ergonomic grip in order to facilitate a fatigue-free working. The device surface is slightly rough, thereby uncontrolled gliding in the hand is eliminated. The devices are fed by a powerful compact NiMH-battery pack sufficient for continuous working time of about 4 hours. An LED operation indicator integrated in the yoke housing indicates the battery charge status. The carrying case for battery pack can be fastened quickly at the waist-belt. The HANSA-DC yokes meet the requirements of ASTM E 709- 95 and ASTM E 1444. The pull-off strength by poles distance of 135 mm is more than 27 kg (265 N), whereas the ASTM E1444 requires min. 22.5 kg (225 N).

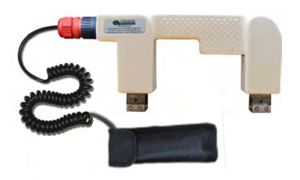

UM-9 / HANSA–DC yoke
	Pole Spacing, mm	170
	Pole Cross Section, mm	25x25
	Dimensions, mm	250x135x49
	Operating Current, A	1,0
	Lifting Force acc. to ASTM E1444, N	>225
	Voltage, V	6
	Continuous working time, h	2
	Weight, kg	2,7
	Protection Class	IP 65

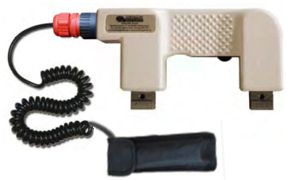

UM-10 / HANSA–DC yoke
	Pole Spacing, mm	135
	Pole Cross Section, mm	25x25
	Dimensions, mm	210x110x51
	Operating Current, A	1,2
	Lifting Force acc. to ASTM E1444, N	>225
	Voltage, V	6
	Continuous Working Time, h	2,5
	Weight, kg	2,0
	Protection Class	IP 65
