KMU 8/42 CROSS YOKE

Specifications

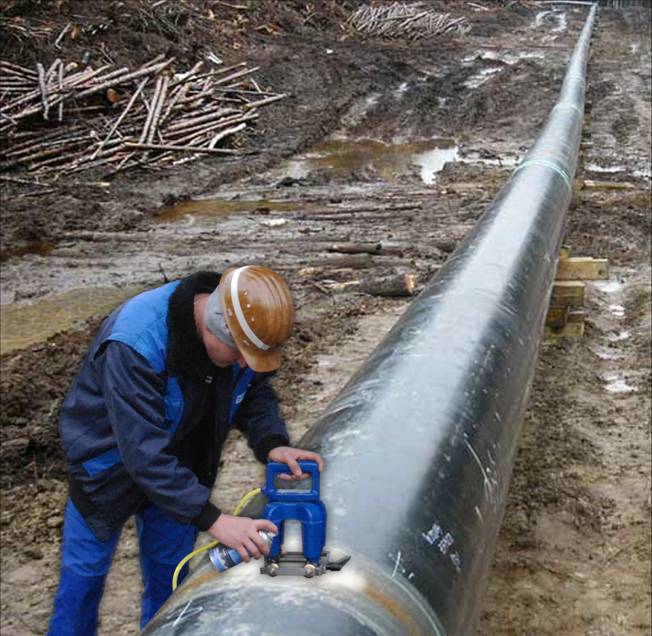

     The KMU 8/42 Cross Yoke represents a supplement to the HANSA series – the new generation of hand yoke magnetizing devices. The KMU 8/42 consists of two alternating current yokes disposed crosswise with pole spacing of 170 mm. They are fed by 2 equipotent alternating currents with 90° phase shift, thus producing a rotating magnetization vector whose field strength is equal in all directions. This magnetization technique enables the detection of discontinuities of any orientation. In practice it enables: simultaneous indication of longitudinal, transversal and oblique cracks during one operation. Therefore, the KMU 8/42 Cross Yoke is especially appropriate for testing of lengthy welded joints, for example in pipe manufacturing, tank and pressure vessel building or ship building.

The long-duration duty cycle of up to 60 % favourises the application in these production fields. The magnetic field is induced to the part under test over a short air gap. Therefore the yoke poles are equipped with adjustable castors. The castors maintain a constant air gap between the poles and the part surface and make the yoke easily movable. The KMU 8/42 Cross Yoke is completely sealed, powered by an additional transformer with 2 x 42 V alternating voltage and fulfills the IP 54 protection class requirements. The cross yoke and the transformer are coupled with a flexible 5 m cable. The transformer meets the criteria of the IP 23 protection class and requires the primary voltage of 3 x 400 V.

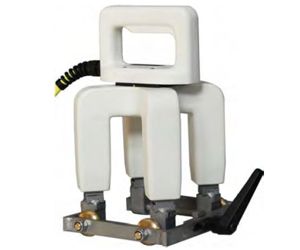

KMU 8/42 Cross Yoke
	Pole Spacing, mm	120x120
	Pole Cross Section, mm	25x25
	Dimensions, mm	235х180х320
	Tangential FIeld Strength, A/cm	32
	Lifting Force, N	>300
	Voltage Supply, V	3x400
	Operating Current, A	2x10
	Duty Cycle, %	60
	Weight, kg	9.2
	Cable (detachable), m	5
	Protection Class	IP 54
	Necessary Auxiliaires: Step-down Transformer  Optional: changeable cable 10m Also available. KMU 8/42 Cross Yoke in special design for fillet weld testing KMU 8/42 Cross Yoke in special design for planar surface testing
KMU 8/42 mini cross yoke
	Pole Spacing, mm	140x140
	Pole Cross Section, mm	25x25
	Dimensions, mm	210x220x330
	Tangential Field Strength, A/cm	27
	Lifting Force, N	>250
	Supply Voltage, V	3x400
	Operating Current, A	2x8.5
	Duty Cycle, %	60
	Weight, kg	9.8
	Cable Length, m	5
	Protection Class	IP 54
	Necessary Auxiliaires: Step-down transformer Optional: changeable 10 m cable Also Available: KMU 8/42 mini Cross Yoke in special design for fillet weld testing KMU 8/42 mini Cross Yoke in special design for planar surface testing
