INDUCTIVE UV and WHITE LIGHT LED SOURCES

INDUCTIVE UV and WHITE LIGHT LED SOURCES

Specifications

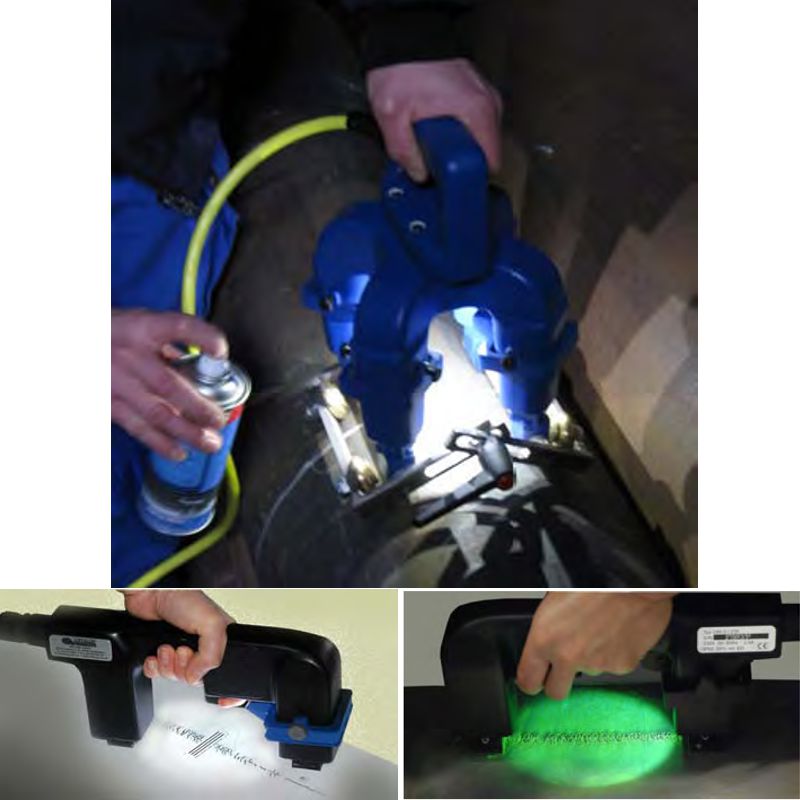

               Inductive UV or White Light LED Sources are used while working with hand yoke or cross yoke electromagnets. The light sources have been designed for simultaneous irradiation (illumination) of the working area during testing with fluorescent or colour magnetic particle powder by single handed operation. The adjustable swivel head ensures the correct irradiation angle depending on distance between poles and length of the yoke legs in order to achieve a homogeneous irradiation field right in the center of the working area. The splash-protected (IP 65) light source fits on all hand yokes with a pole cross section up to 50 x 50 mm.

The light sources can be fixed quickly and easily to the yoke leg and fastened with two plastic screws. When switching on the yoke – viz. during magnetizing, post-magnetizing and the examination cycles – the unit is fed by inductive current and illuminates/ irradiates the working area. Therefore no additional power source is needed. The light sources have proved of value, especially during testing under restricted space conditions, on construction sites and improvised test places where only limited space for using auxiliary instrument is available.

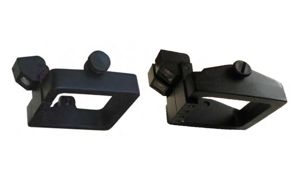

Inductive UV Irradiation Source with swivel head
  1 UV-LED 2 UV-LED
Operating Current cca.500 mA cca.500 mA
UV Source 1 UV LED 2 UV LED
UV LED Lifetime cca.20000 h cca.20000 h
UV Intensity at 70mm distance cca.2000 µW/cm2 cca.3500 µW/cm2
Wavelength 365 nm 365 nm
Weight cca.70 g cca.80 g
Dimensions 65x80 mm 65x80 mm

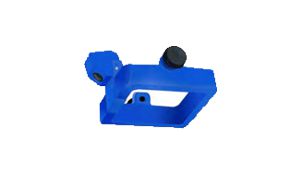

Inductive White Light Source with swivel head

Operating Current cca.500 mA
White light source 1 LED
LED Lifetime cca.10000 h
Light intensity at 70mm distance cca.1000 lux
Weight cca.70 g
Dimensions 65x80 mm
