TH-174 Portable Hardness Tester
Specifications

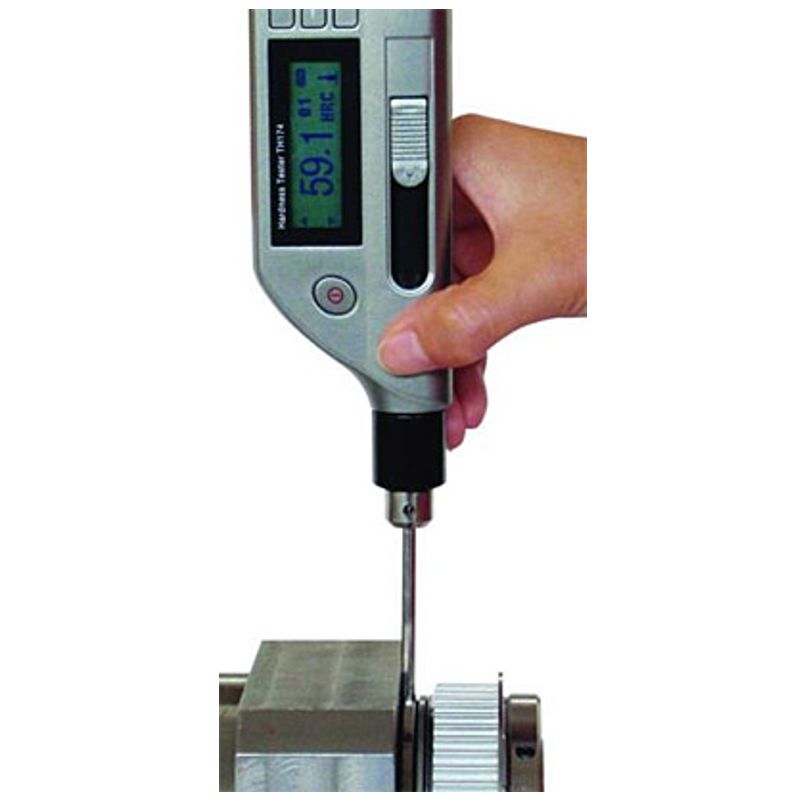

TH-174 Handheld Metal Hardness tester for Confined Spaces
- For fast, on site hardness testing
- Integrated impact device DL
- All hardness units: HL (Leeb), HB (Brinell), HRB (Rockwell B), HRC (Rockwell C), HV (Vickers), HS (Shore D)
- Large measuring range: 560-950 HLD / 80-950 HV on steel
- Storage capacity up to 270 readings divisible into 9 blocks
- Length of the front part: 50 mm , Ø = 4.2 mm
- PC data transfer via USB to MS Hyper terminal for storing and printing
- Adjustable display illumination
- High accuracy: up to ± 6 HLD (± 0.5 %)
- Automatic shutdown
- Automatic impact direction detection
- Deletion of data automatically or manually
- Limit setting (min. and max. adjustable with an arrow that indicates when limits are exceeded)
- Software calibration with test block
- Clear LCD display showing all functions and parameters
- Optional printer TA-220 available
- Conforms to ASTM A 956
| Technical Characteristics | |
|---|---|
| Measuring Range: | 32 - 100 HS 20 - 68 HRC 60 - 100 HRB |
| Hardness Parameter: | Rockwell HRB, HRC; Vickers HV; Brinell HB; Shore HS |
| Power Supply: | rechargeable battery NiMh 3,6 V, 70 mAh |
| Operating Temperature: | 5°C - 50°C |
| Accuracy: | ± 0,5% |
| Weight: | 130 g |
| Dimensions: | 150 mm x 22 mm x 53 mm |
| Display: | 10 mm x 55 mm |
