UCI Hardness Tester AlphaDur II

UCI Hardness Tester AlphaDur II

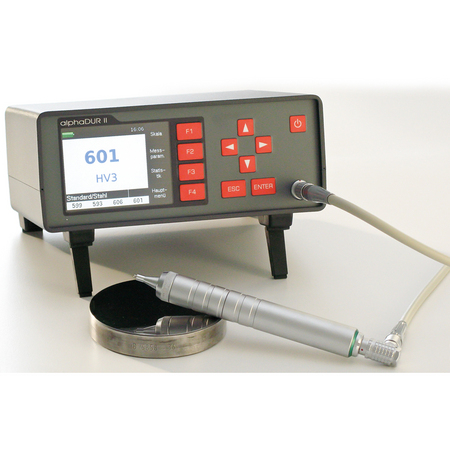

AlphaDur II portable Hardness Tester

  • fast and easy hardness testing
  • clear user interface with function keys
  • measuring method according to DIN 50159 and ASTM A1038
  • robust metal casing
  • individual material calibrations
  • extensive storage and statistical functions
  • applicable for automated measurements
Technical Characteristics:
Hardness Scale: HRC, HV, HB, HRB and tensile strength
Test Load: 10, 20, 30, 49 or 98 N, depending on the UCI probe
Interface: USB-Host, USB-Device, RS232
Data Memory: 500,000 data records with date, time and GOOD/BAD rating
Statistics: Average value, minimum, maximum, standard deviation
Battery: Built-in NiMH battery, battery life approx. 7 h, rechargeable by power supply / battery charger 100 - 240 V AC
Minimum Sample: Approx. 5 mm (depends on the dimension and the shape of the sample)
