AlphaDUR Mini - UCI Hardness Tester
Specifications
Attached files:

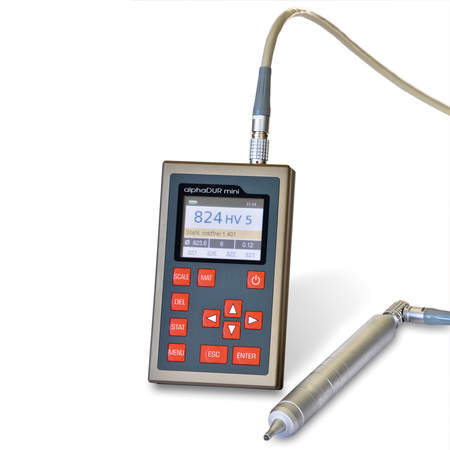

AlphaDUR Mini - UCI Hardness Tester
The alphaDUR mini is the small and handy variant of the alphaDUR which has been successfully used in hardness testing since many years. The technology is identical and the accessories are compatible. The operation of the alphaDUR mini is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by special keys. Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 1 and 10 kg can be chosen depending on the application and the sample surface.
Main characteristics:
- fast and easy hardness testing
- measuring method according to DIN 50159 and ASTM A1038
- robust metal casing
- large colour display
- built-in Li-ion battery
- extensive storage and statistical functions
- USB interface and PC software
| Technical Characteristics: | |
|---|---|
| Hardness Scale: | HRC, HV, HB, HRB and tensile strength |

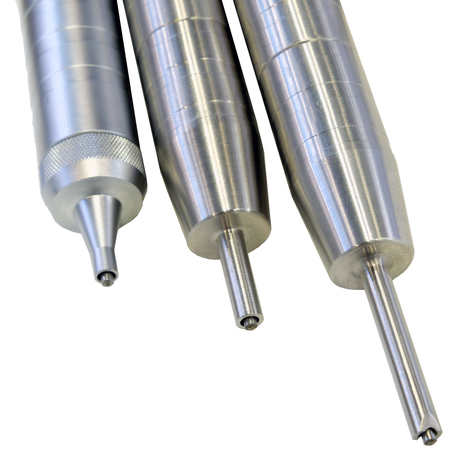

| Test Load: | 10, 20, 30, 49 or 98 N, depending on the UCI probe |
| Interface: | USB |
| Data Memory: | 100,000 data records with date, time and GOOD / BAD rating |
| Statistics: | average value, minimum, maximum, standard deviation |
| Battery: | built-in Li-ion battery, battery life approx. 12 h, rechargeable by charging adapter or PC-USB |
| Minimum Sample: | Approx. 5 mm (depends on the dimension and the shape of the sample) |
