TH-170 Portable Hardness Tester
Specifications

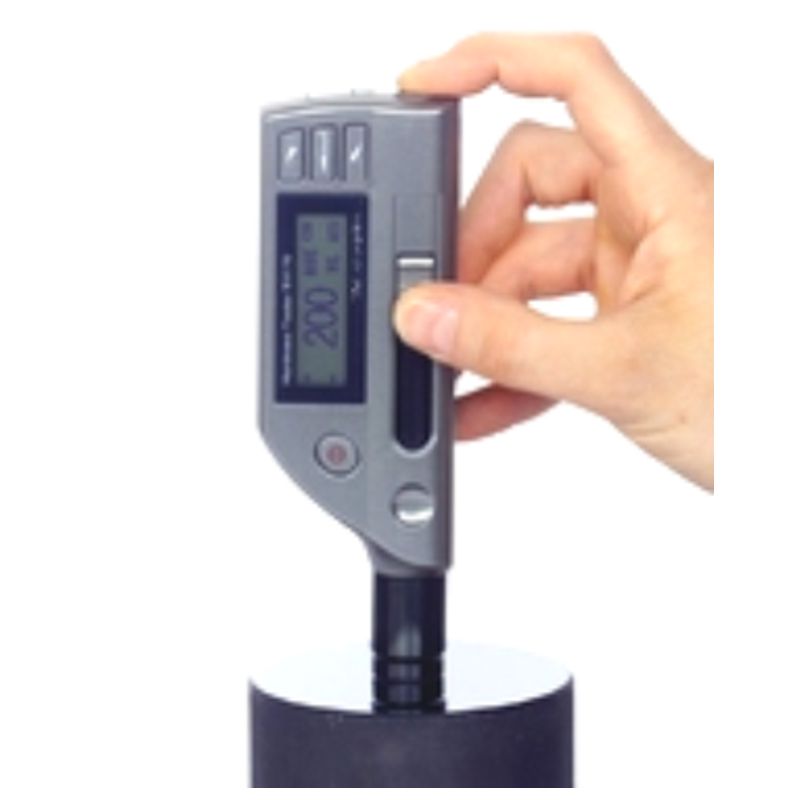

TH-170 Digital Portable Hardness Tester
- Hardness test block with Leeb value and HRC value
- Automatic gravity compensation for testing at any angle
- Conforms to ASTM A 956 and DIN 50156
| Technical Specifications | |
|---|---|
| Measuring Range: | 32 - 100 HS 20 - 68 HRC 60 - 100 HRB 59 - 86 HRA 80 - 650 HB 80 - 940 HV |
| Hardness Parameter: | Rockwell HRB, HRC; Vickers HV; Brinell HB; Shore HS, HL |
| Power Supply: | rechargeable betteries NiMh 3,6 V, 70 mAh |
| Operating Temperature: | 5°C - 50°C |
| Accuracy: | ± 0,5% |
| Weight: | 130 g |
| Dimensions: | 150 mm x 22 mm x 53 mm |
| Display: | 10 mm x 55 mm |
