dynaROCK II universal rebound tester
Specifications
Attached files:
- Fast and easy hardness testing
- Measuring method according to DIN 50156 and ASTM A956
- Robust metal casing
- Large colour display
- Embedded Li-ion battery
- 12 groups of materials
- Extensive storage and statistical functions
- USB interface and PC software
Technical Data:
Hardness Scale: HRC, HB, HV, HRB, HL, HS and tensile strength

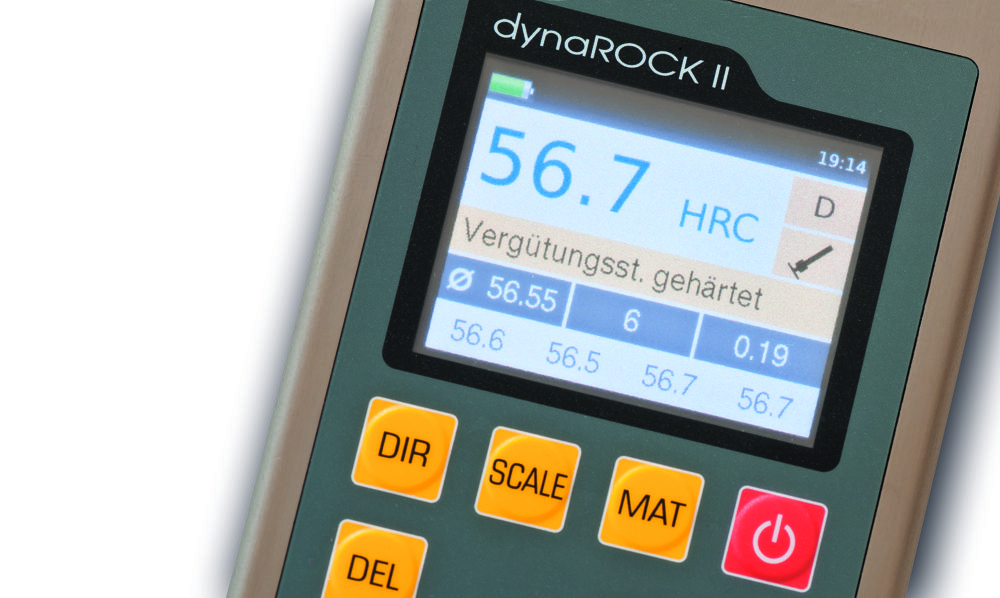

Display: colour LCD 320 x 240 pixels
Statistics: average value, standard deviation, minimum, maximum
Data Memory: 500,000 data records with date, time, GOOD/BAD rating and impact direction
Power Supply: Integrated rechargeable lithium-ion battery Charging by charging adapters or by PC-USB.
Operating time: approx. 16 hours
Interface: USB
Dimensions: 135 x 79 x 22 mm
Weight: 425 g incl. impact device D and cable
Scope of Delivery:

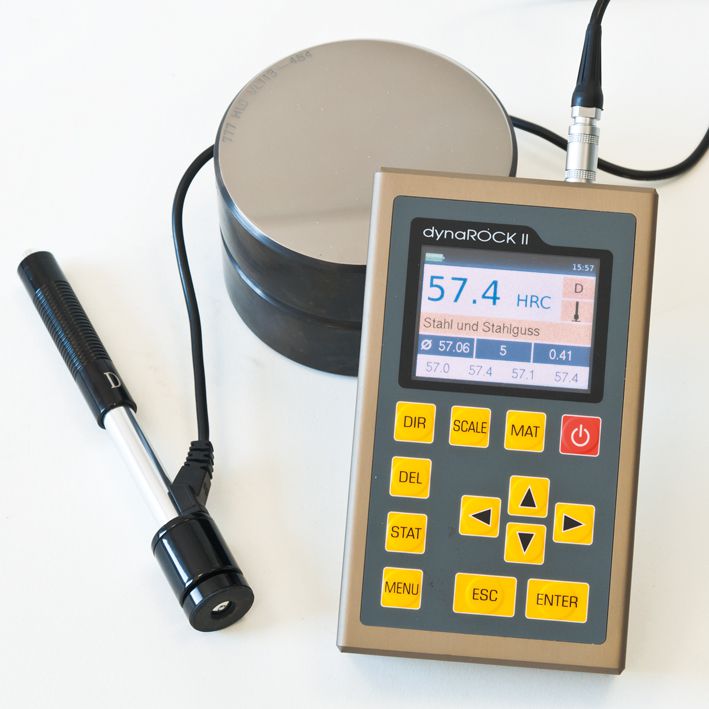

Basic device, impact device type D with cable, hardness comparison block with manufacturer‘s calibration, cleaning brush, manual, interface cable, USB charging adapter, PC software, case.
Optional Accessories:

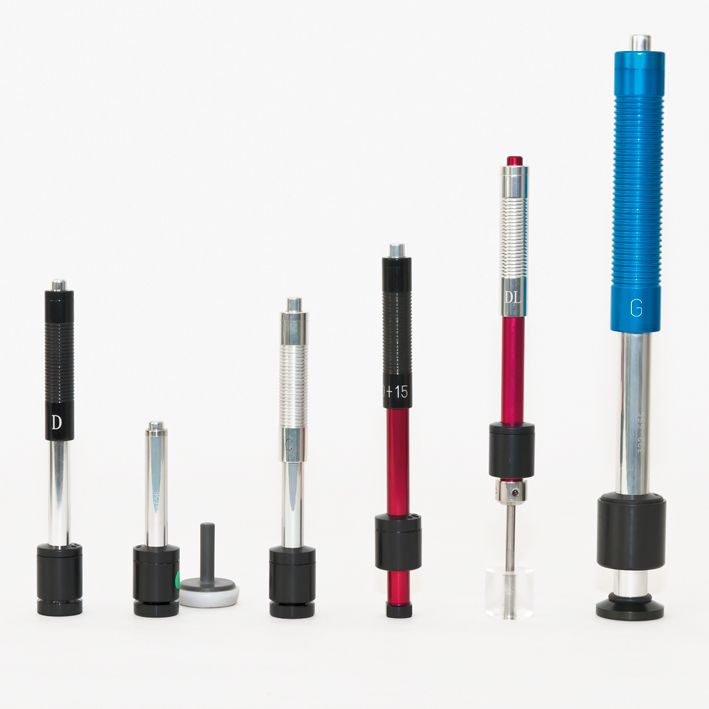

placement rings for measurements on curved surfaces (concave / convex), hardness comparison blocks with calibration certificate for impact devices Dxx and C in 3 different hardnesses, hardness comparison blocks with calibration certificate for impact device G in 2 different hardnesses
