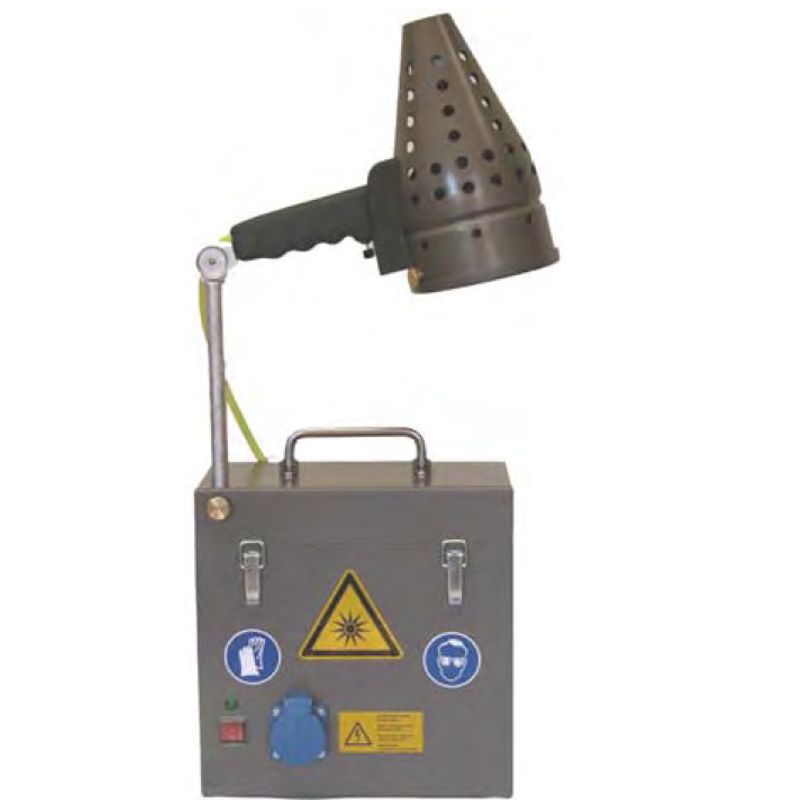

Helling Superlight C 10 A-S portable mercury-vapour UV lamp
Specifications
The Superlight C 10 A-S lamp consists of two construction units:
1. Metal case with integrated power supply unit, starting controller, switch, plug and holder;
2. UV source with connection cable.
- Advantages:
Additional spotlight with low voltage 12 V (10 W) for targeted illumination in darkrooms. Additional safety socket, e.g. for connecting an electromagnet. Also useful for leak testing of oil with intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Scope of delivery: - - Metal case with starting controller, cable and holder;
- - UV source case with HN 100 UV lamp, structured band-pass filter and UV-B long-pass filter;
- - UV protective glasses
- Technical Data:
Supply Voltage: 230V - 50/60Hz Working Current: aprox. 1,2 A Warm-up Time: < 5 min. Recovery Time: < 10 min. UV source: HN 100W-E27 UV source lifetime: approx. 1500 h UV intensity at 40mm distance: 4000 µW/сm2 Wavelength: 365 nm Emission half-width: aprox. 1,5 nm Spotlight: Sofitte 12 V – 10W Risk class acc. to EM6: II Weight: aprox. 7,5 kg Dimensions: 280 x 280 x 140 mm Protection class: IP 20
