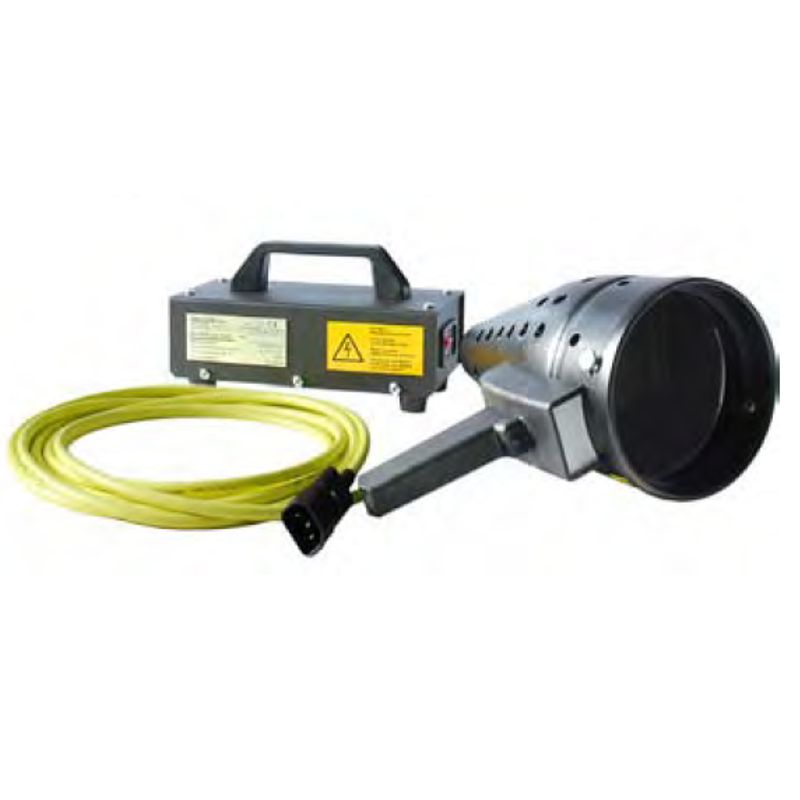

Helling Super UV 2005 portable focused mercury-vapour UV lamp

Specifications

The Super UV 2005 lamp consists of two construction units:

                   1. power supply unit in a steel housing with integrated starting controller, switchand plug;
                   2. UV source with connection cable.

Advantages:
A low cost UV lamp. Possible application under daylight due to high UV intensity. Also useful for leak testing of oils with intrinsic fluorescent or oils doped with H 800 fluorescent additive.

Scope of delivery:

- Steel housing with starting controller and cable;

- UV source case with HN 100 UV lamp, plain band-pass filter and UV-B long-pass filter;

- UV protective glasses, writing tools;

- aluminium carrying case.

Technical Data:

Supply Voltage:	230V - 50/60Hz
Operating Current:	aprox. 1,1 A
Warm-Up Time:	< 5 min.
Recovery time:	< 10 min.
UV Source:	HN 100W-E27
Lifetime of the UV source:	aprox. 1500 ore
UV intensity at 400 mm distance:	9000 µW/сm2
Wavelength:	365 nm
Emisiion half-width:	aprox. 1,5 nm
Risk class acc. to EM6:	IV
Weight:	aprox. 5 kg
Dimensions:	200 x 100 x 65 mm
Protection class:	IP 20
