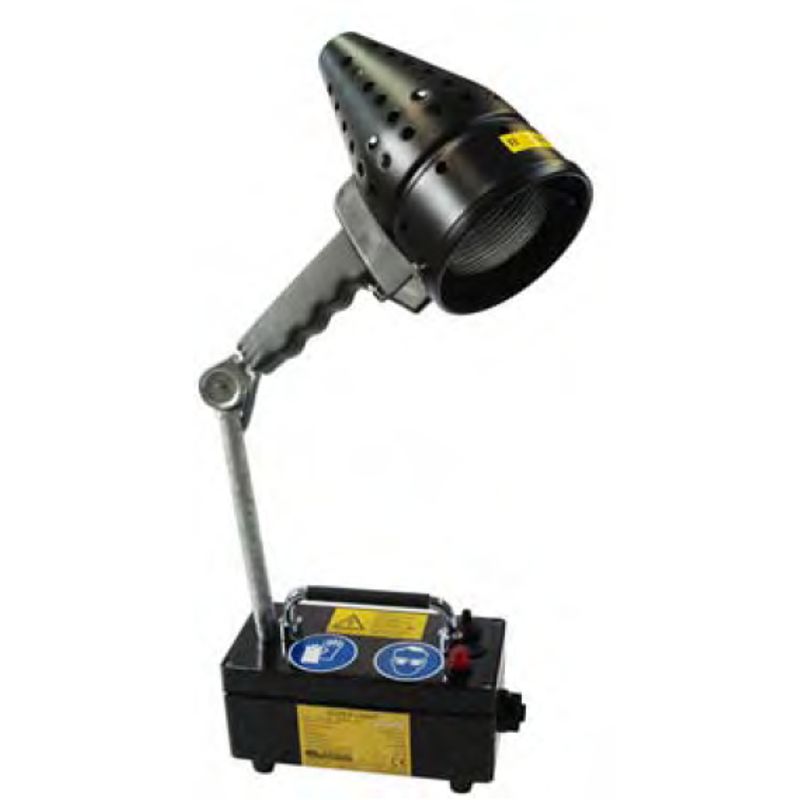

Superlight C 10 A-HE UV lamp
Specifications
The Superlight C 10 A-HE lamp consists of three construction units:
1. power supply unit in an aluminium housing with integrated starting controller, switch and plug;
2. UV source with connection cable;
3. aluminum holder
- Advantages:
Additional spotlight with low voltage 12 V (10 W) for targeted illumination in dark rooms. Also useful for leak testing of oils with intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Scope of delivery:- - Aluminum housing with starting controller and cable;
- - UV source case with HN 100 UV lamp, structured band-pass filter and UV-B long-pass filter; holder; - - UV protective glasses, writing tools;
- - aluminium carrying case.
- Technical Data:
Supply Voltage: 230V - 50/60Hz Operating Current: aprox. 1,2 A Warm-Up Time: < 5 min. Recovery Time: < 10 min. UV Source: HN 100W-E27 UV source lifetime: approx. 1500 h UV intensity at 400 mm distance: 4000 µW/сm2 Wavelength: 365 nm Emission half-width: aprox. 1,5 nm Spotlight: Sofitte 12 V – 10W Risk class acc. to EM6: II Weight: aprox. 5 kg Dimensions: 200 x 100 x 80 mm Protection Class: IP 20
