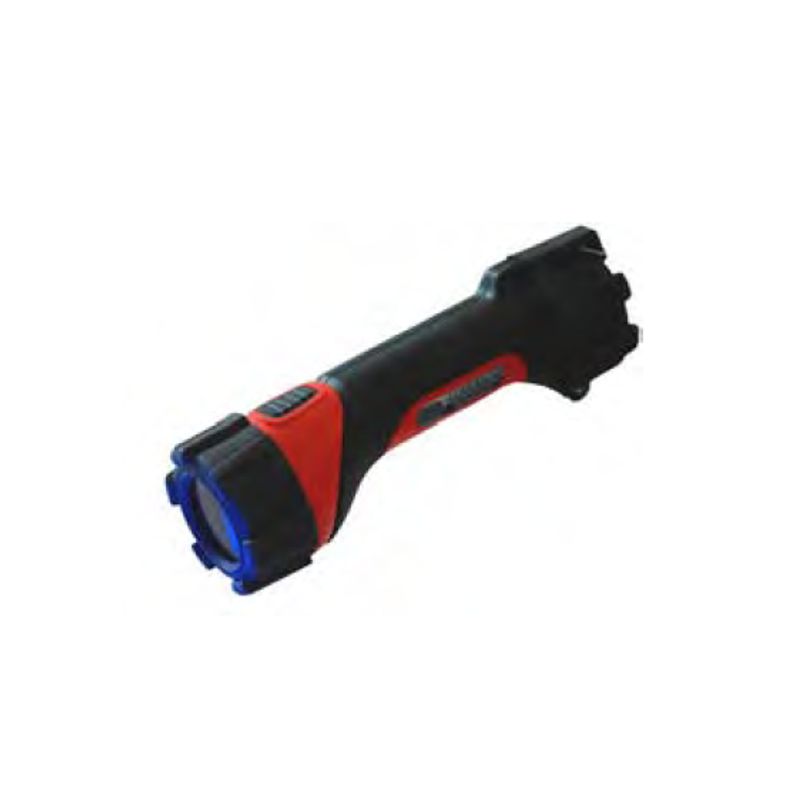

UV-Inspector 385 / Policheck NDT UV LED pocket lamp
Specifications
A shock-proof and splash-proof UV LED pocket lamp for application in NDT, criminalistics as well as leak testing of oilswith intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Technical Data:
| Operating Voltage: | 4,8 V (4 batteries х 1,2 V) |
| Operating Voltage: | approx. 600 mA |
| UV Source: | 1 LED UV |
| Lifetime of the LEDs: | 10 000 h |
| UV Intensity at 400mm distance: | 1000 µW/сm2 |
| UV Intensity at 100mm distance: | 9800 µW/сm2 |
| Wavelength: | 365 nm |
| Emission half-width: | aprox. 8,5 nm |
| Risk class acc. to EM6: | II |
| Weight: | approx. 480 g |
| Dimensions: | 230 x 75 mm |
