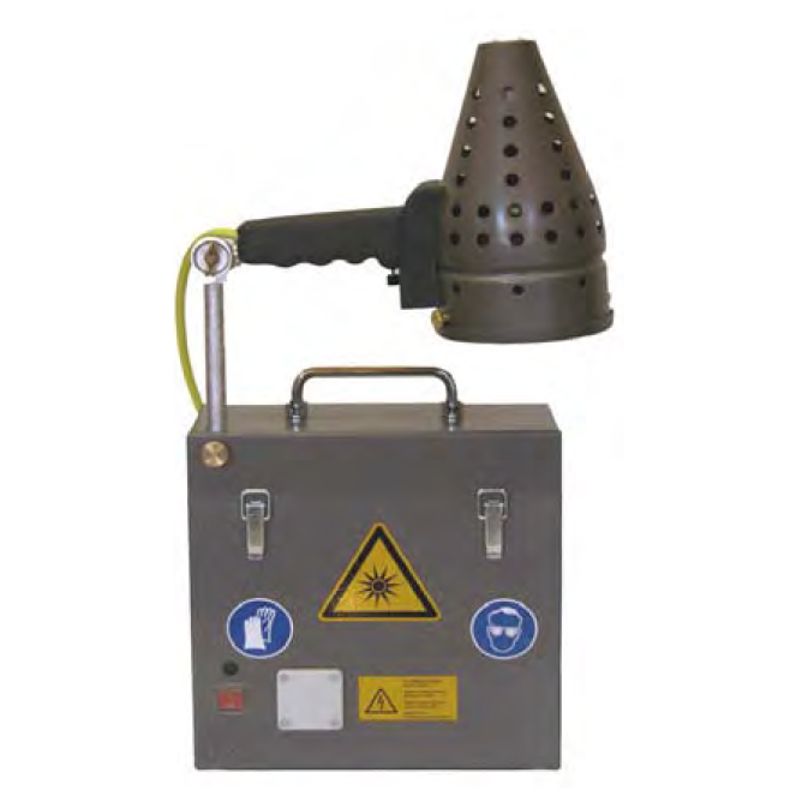

Helling Superlight C 10 A-SHК portable focused mercury-vapour UV lamp

Specifications

The Superlight C 10 A-SHK consists of two construction units:
                1. Metal case with integrated power supply unit, starting controller, switch, plug and holder;
                2. UV source with connection cable

Advantages:
Possible application also under daylight due to high UV intensity. Also useful for leak testing of oil with intrinsic fluorescent or oils doped with H 800 fluorescent additive

Scope of delivery:

- Metal case with starting controller,

- Cable and holder;

- UV source case with HN 100 UV
- Lamp,

- Plain band-pass filter and UV-B long-pass filter;

- UV protective glasses



Technical Data:

Supply Voltage:	230V - 50/60Hz
Working Current:	aprox. 1,2 A
Warm-up Time:	< 5 min.
Recovery Time:	< 10 min.
UV source:	HN 100W-E27
Durata de viață a sursei UV:	approx. 1500 h
UV intensity at 400 mm distance:	9000 µW/сm2
Wavelength:	365 nm
Emission half-width:	aprox. 1,5 nm
Risk class acc. to EM6:	IV
Weight:	aprox. 7,5 kg
Dimensions:	280 x 280 x 140 mm
Protection class:	IP 20
