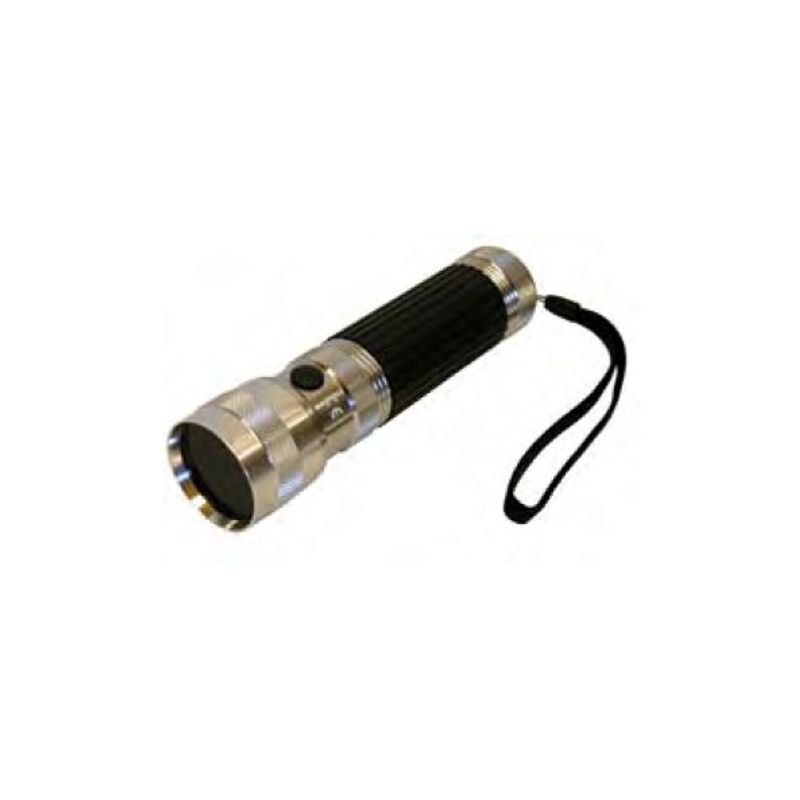

UV Inspector 380-R UV LED pocket lamp
Specifications
An UV LED pocket lamp with two switch levels for application in NDT, criminalistics as well as leak testing of oils with intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Technical Data:
| Operating Voltage: | 4,8 V (4 acumulatoare х 1,2 V) |
| Operating Current: | approx. 380 mA |
| UV source: | 1 UV LED |
| Lifetime of the LEDs: | 10 000 h |
| UV intensity at 200mm distance: | 2000 µW/сm2 |
| UV intensity at 70mm distance: | 8500 µW/сm2 |
| Wavelength: | 365 nm |
| Emission half-width: | approx. 8,5 nm |
| Risk class acc. to EM6: | II |
| Weight: | aprox. 350 g |
| Dimensions: | 170 x 45 mm |
