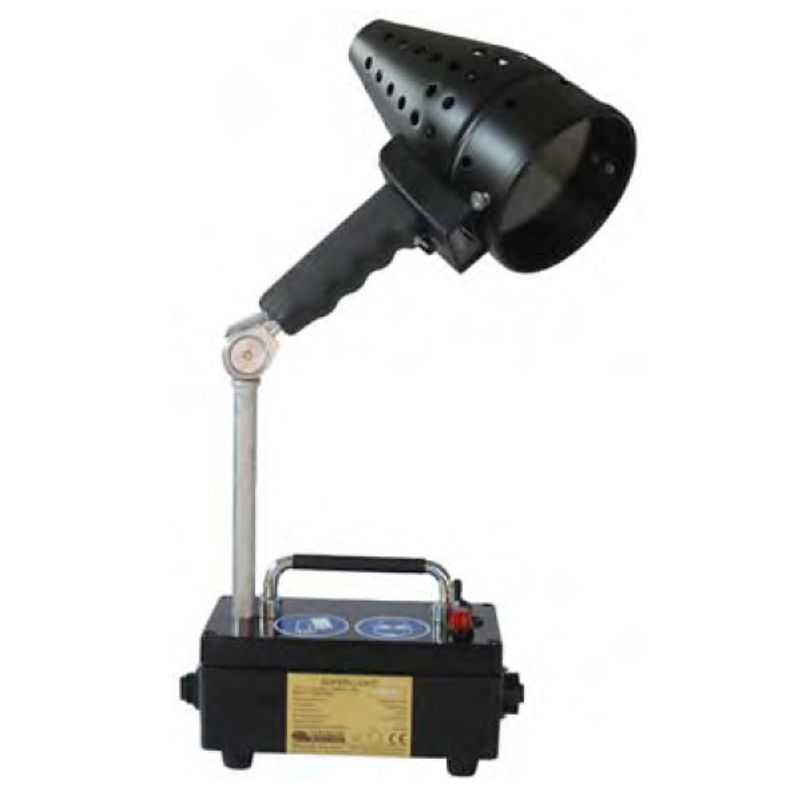

Helling Superlight C 10 A-SH portable focused mercury-vapour UV lamp
Specifications
The Superlight C 10 A-SH lamp consists of three construction units:
1. power supply unit in a aluminium housing with integrated starting controller, switch und plug;
2. UV source with connection cable;
3. aluminum holder.
- Advantages:
Possible application even under daylight due to high UV intensity. Additional spotlight with low voltage 12 V (10 W) for targeted illumination in dark rooms. Also useful for leak testing of oil with intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Scope of delivery:- - Aluminium housing with starting controller and cable;
- - UV source case with HN 100 UV lamp, plain band-pass filter and UV-B long-pass filter;
- - holder;
- - UV protective glasses;
- - writing tools; aluminum carrying case.
- Technical Data:
Supply Voltage: 230V - 50/60Hz Operating Current: approx. 1,2 A Warm-up Time: < 5 min. Recovery Time: < 10 min. UV source: HN 100W-E27 UV source lifetime: aprox. 1500 h UV intensity at 400 mm distance: 9000 µW/сm2 Wavelength: 365 nm Emission half-width: aprox. 1,5 nm Spotlight: Sofitte 12 V – 10W Risk class acc. to EM6: IV Weight: aprox. 8 kg Dimensions: 200 x 100 x 80 mm Protection class: IP 20
