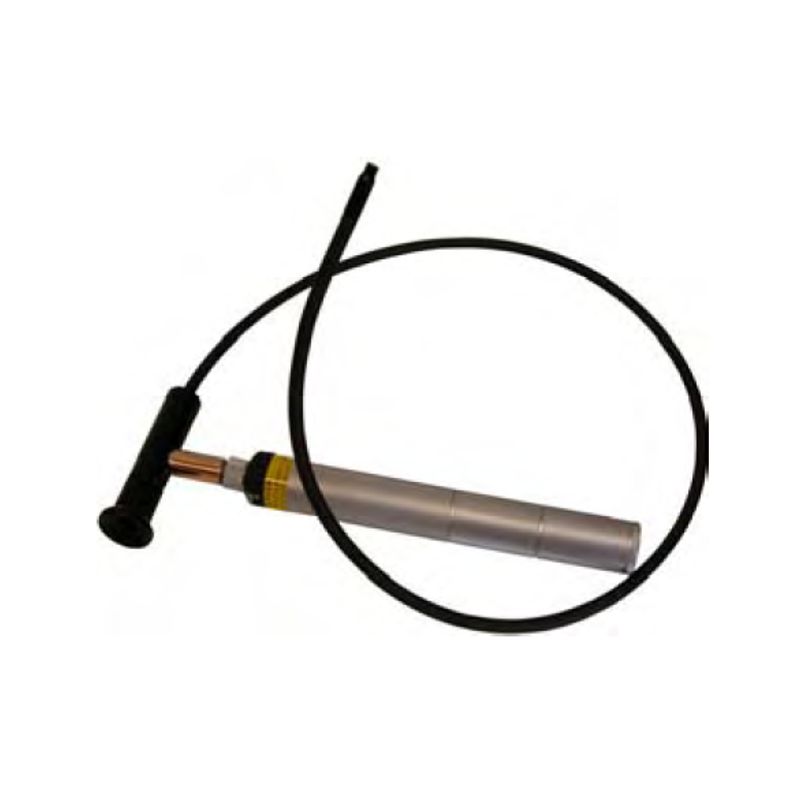

Semi-flexible UV Endoscope
Specifications
A high resolution image guide with 7,400 single fibres for application in NDT, criminalistics as well as leak testing of oils with intrinsic fluorescent or oils doped with H 800 fluorescent additive.
Technical Data:
| Operating Voltage: | 4,8 V (4 х 1,2 V batteries) |
| Operating Current: | approx. 500 mA |
| UV Source: | 1 UV LED |
| Lifetime of the LEDs: | 10 000 h |
| UV Intensity at 20 mm distance: | 6000 µW/сm2 |
| Wavelength: | 365 nm |
| Emission half-length: | approx. 8,5 nm |
| Weight: | approx. 550 g |
| Dimensions: | 1000 x 8 mm |
